Stainless Mjic X Mm Standpipe SS9200-06-08

Specifications

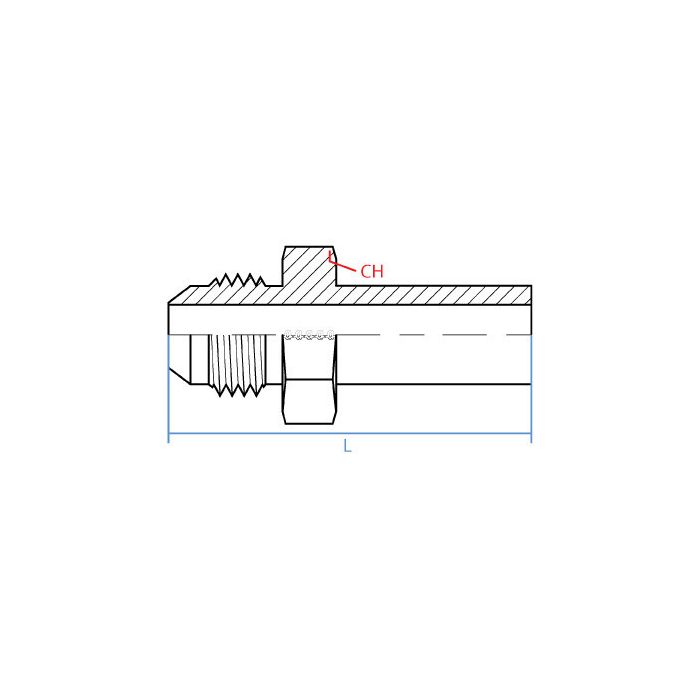

CH Width 16mm	L Length 41mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 8mm	Side 2 Gender F	Side 2 Size 8mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number C1FP67	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-06-08	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this standpipe work with standard hydraulic fittings or is it something special?

Question by: Donna F on Apr 29, 2025, 7:39 PM

This standpipe is designed with a 3/8" JIC fitting on one side, and an 8mm DIN standpipe fitting on the other, offering you versatile connection options for different systems.

Answer by: Customer Support on May 1, 2025, 5:54 PM

got a hose end that’s 3/8 MJIC, is this the standpipe that matches up with it?

Question by: Diane T on Jan 2, 2026, 2:20 PM

On the JIC side, it is a male 3/8 inch JIC with a 9/16-18 UNF thread callout, so it matches a 3/8 MJIC connection.

Answer by: Customer Support on Jan 4, 2026, 6:45 AM

got a DIN standpipe port on my hydraulic block that takes an 8mm fitting, does the other end of this thing come out as a JIC male so I can tie into a standard JIC line?

Question by: Hugh P on Mar 15, 2026, 2:09 PM

That's the setup. One end is a male JIC at 3/8 inch with a 9/16-18 UNF thread, and the other end is a female DIN standpipe sized at 8mm. So if your block has an 8mm DIN standpipe port and you need to run a JIC line off it, this adapter bridges that gap without any additional fittings in between.

Answer by: Customer Support on Mar 17, 2026, 6:48 AM
