Ss316 90* Elbow Mjic X Mmetric

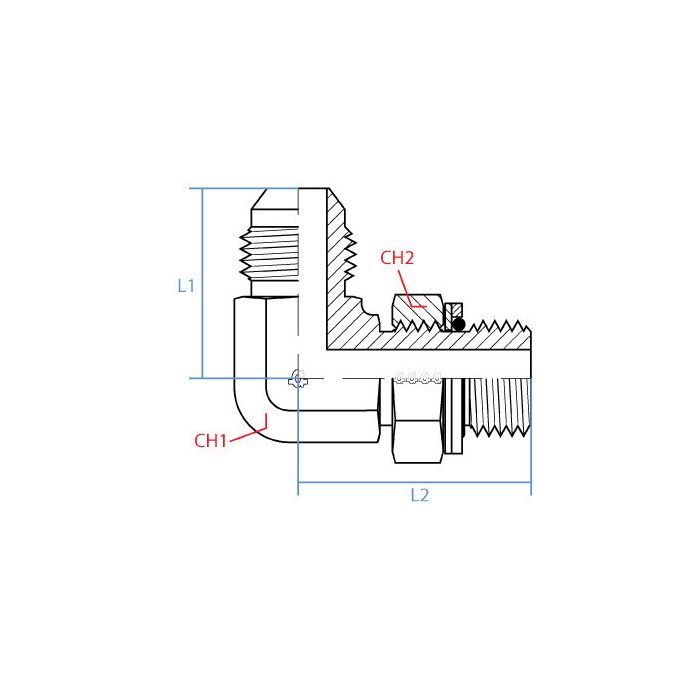

CH1 Width 19mm	CH2 Width 22mm	L1 Length 36mm	L2 Length 26.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9069-06-16	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a straight adapter out for a 90, is this one male jic to male metric?

Question by: Kent W on Mar 18, 2026, 10:23 AM

Built as a right angle adapter, it has a 3/8 inch Male JIC on one end with 9/16-18 UNF threads, and a Male Metric M16 x 1.5 on the other. Both sides are male, so it’s meant to screw into female ports or female swivel ends on each side.

Answer by: Customer Support on Mar 20, 2026, 6:31 AM
