Ss316 90* Elbow Mjic X Mbspt SS9063-06-06

Specifications

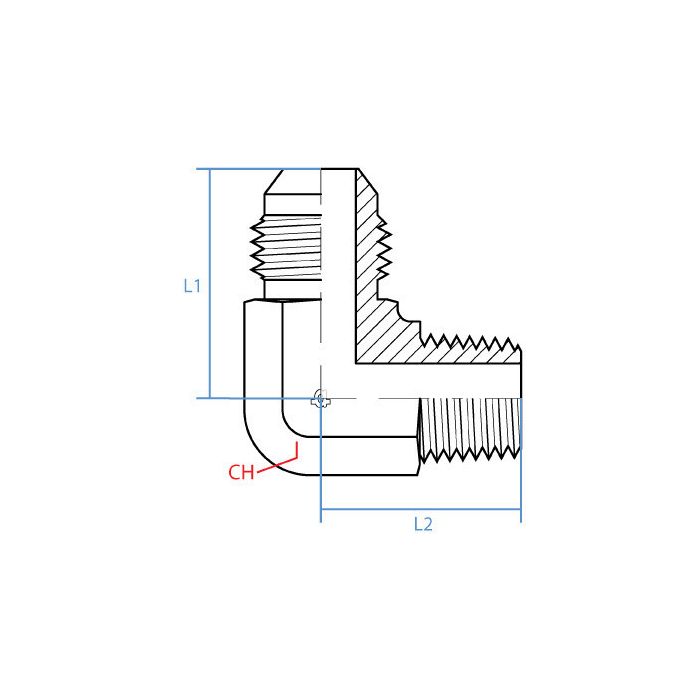

CH Width 19mm	L1 Length 27.3mm	L2 Length 27.3mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9063-06-06	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line coming off a British-made pump with BSPT ports and I need to tie into a JIC fitting on an American manifold. Will a 90-degree elbow like this actually handle that crossover, or am I going to need an adapter in between?

Question by: Bonnie P on Jan 8, 2026, 8:11 PM

That crossover is exactly what this fitting handles. One end is 3/8" male JIC running on 9/16-18 UNF threads, and the other is 3/8" male BSPT on R 3/8-19 threads. No intermediate adapter needed. The 90-degree angle also means you can redirect the line right at the connection point instead of running extra hose to make the turn.

Answer by: Customer Support on Jan 10, 2026, 6:57 AM

So, this thing’s got different threads on each end? I wanna make sure I’m gettin’ it right.

Question by: Todd G on Oct 10, 2025, 12:53 PM

Exactly. It’s designed with a male JIC (9/16 - 18 UNF) connection on one side and a male BSPT (R 3/8 - 19) on the other, both 3/8".

Answer by: Customer Support on Oct 12, 2025, 6:24 AM

trying to hook a 3/8 JIC hose end to a 3/8 BSPT port with a tight turn, is this the right elbow?

Question by: Ralph S on May 4, 2025, 6:16 AM

For that kind of hookup, it matches a 3/8 inch male JIC on one side with 9/16-18 UNF threads, and a 3/8 inch male BSPT on the other with R 3/8-19 threads. It’s a 90 degree elbow meant to change direction while adapting between those two thread types.

Answer by: Customer Support on May 6, 2025, 6:13 AM
