Ss316 90* Elbow Mjic X Mbspt SS9063-04-04

Specifications

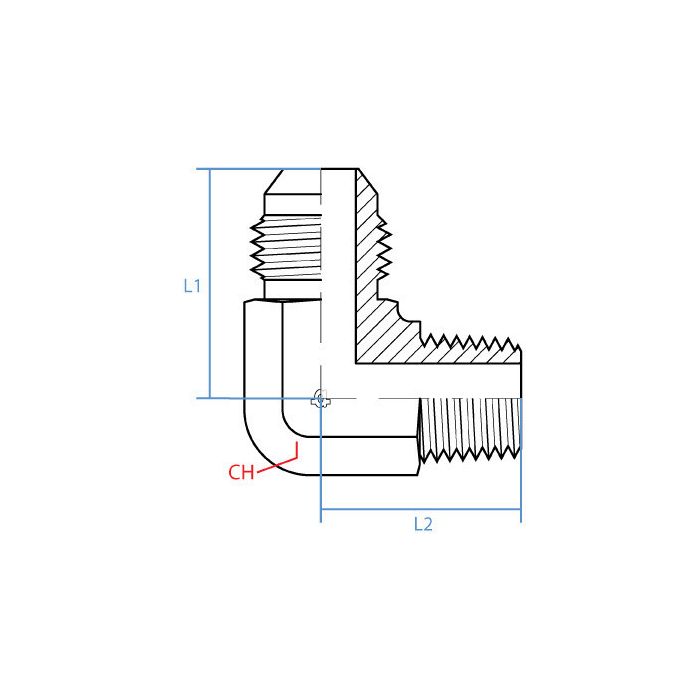

CH Width 14mm	L1 Length 24.3mm	L2 Length 24.9mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number C1GK63	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9063-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a piece of equipment running JIC on one end and BSPT on the other, this the kind of fitting that bridges those two thread standards?

Question by: Brett T on Jul 12, 2025, 3:58 PM

That's what it's built for. One end is a 1/4" male JIC with a 7/16-20 UNF thread, and the other is a 1/4" male BSPT with an R 1/4-19 thread. The 90-degree angle means you can make that connection where a straight adapter just won't lay right. SS316 construction holds up well in wet or corrosive environments too.

Answer by: Customer Support on Jul 14, 2025, 12:53 PM

Hey, will this elbow hold up if I'm usin' it outside?

Question by: Pete C on Jun 9, 2025, 7:43 PM

Constructed from SS316 stainless steel, this elbow offers good corrosion resistance for outdoor applications.

Answer by: Customer Support on Jun 11, 2025, 2:43 PM

trying to replace an elbow on a little 1/4 line, is this the one that’s JIC male on one end and BSPT male on the other?

Question by: Peggy A on Oct 4, 2025, 10:10 AM

For a JIC male to BSPT male 90 degree elbow in 1/4 inch size, this matches that setup. Side 1 is 1/4 inch JIC male with a 7/16-20 UNF thread, and side 2 is 1/4 inch BSPT male with an R 1/4-19 thread.

Answer by: Customer Support on Oct 5, 2025, 12:22 PM
