Ss316 90* Elbow Mjic X Mbspt

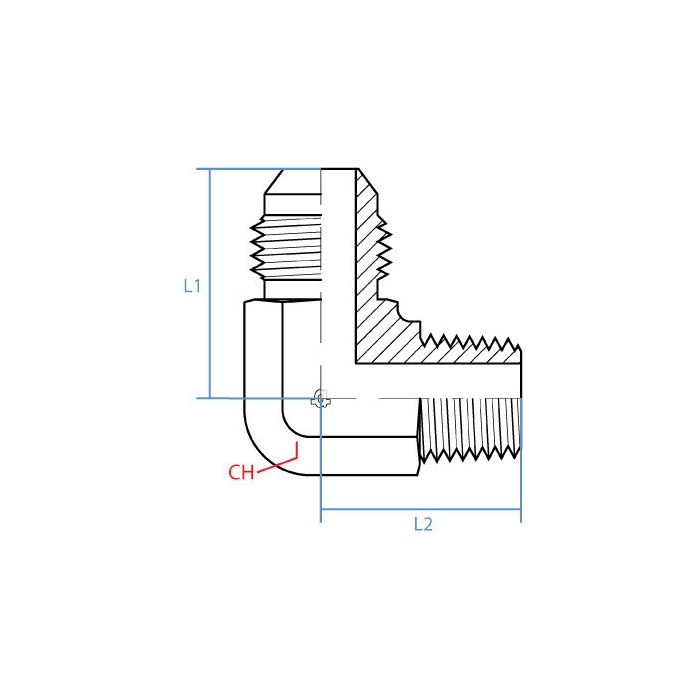

CH Width 12mm	L1 Length 19.8mm	L2 Length 18.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9063-04-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up alright if it's used with some hydraulic fluid that's kinda corrosive?

Question by: Larry P on Dec 15, 2025, 4:00 PM

This 90-degree elbow fitting is constructed from SS316 stainless steel, which gives it a high resistance to corrosion, even in challenging environments.

Answer by: Customer Support on Dec 16, 2025, 4:43 PM

trying to swap an old elbow out, is this one a 1/4 JIC male to 1/8 BSPT male?

Question by: Lee H on Sep 5, 2025, 9:28 PM

You are looking at a 90 degree stainless elbow with a male JIC on one end and a male BSPT on the other. Side 1 is 7/16-20 UNF JIC in the 1/4 inch size, and side 2 is R 1/8-28 BSPT in the 1/8 inch size.

Answer by: Customer Support on Sep 7, 2025, 5:43 PM
