Ss316 90*Adj.Elb Mjic X Mbspp SS9059-12-08

Specifications

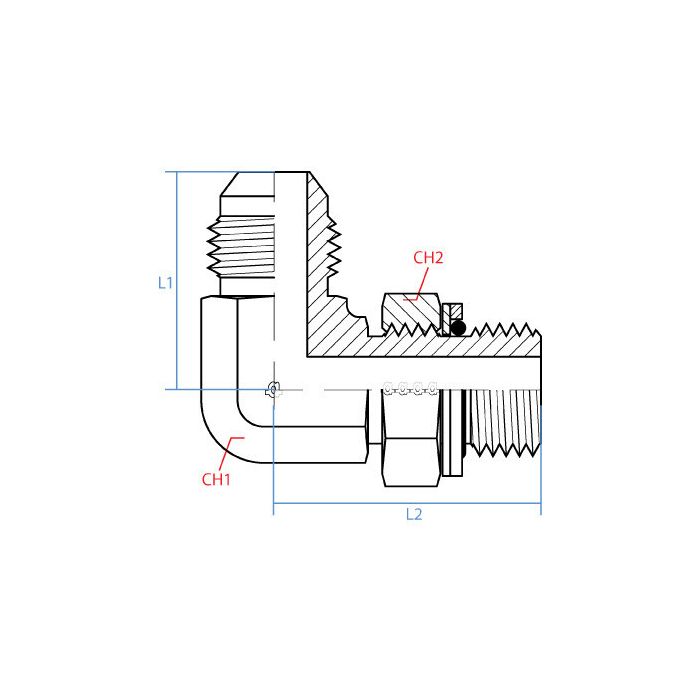

CH1 Width 26mm	CH2 Width 27mm	L1 Length 42mm	L2 Length 45mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-12-08	Product Weight 0.70 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running JIC fittings on one end and BSPP on the other, this elbow gonna bridge that gap without needing an adapter in between?

Question by: Dwayne J on Jul 21, 2025, 12:03 PM

That's what it handles. One side is a 3/4" male JIC with a 1-1/16 - 12 UN thread, and the other is a 1/2" male BSPP running G 1/2 - 14. So you're connecting two different thread standards in a single 90-degree fitting. No need to stack adapters to make it work.

Answer by: Customer Support on Jul 22, 2025, 1:18 PM

Will this elbow fitting hold up if I'm usin' it outside where it gets kinda wet sometimes?

Question by: Lynn H on Feb 4, 2026, 10:02 AM

This stainless steel fitting should work fine in environments where it might get wet, offering good corrosion resistance.

Answer by: Customer Support on Feb 5, 2026, 11:41 AM

trying to swap out an elbow on a hose, is this one the 3/4 JIC on one end and 1/2 BSPP on the other?

Question by: Kent E on Nov 15, 2025, 1:16 PM

On Side 1 it has a male JIC connection with a 1-1/16 - 12 UN thread callout and it is the 3/4 inch size. Side 2 is a male BSPP connection with a G 1/2 - 14 thread callout and it is the 1/2 inch size.

Answer by: Customer Support on Nov 17, 2025, 7:15 AM
