Ss 90*Adj. Elb Mjic X Mbspp

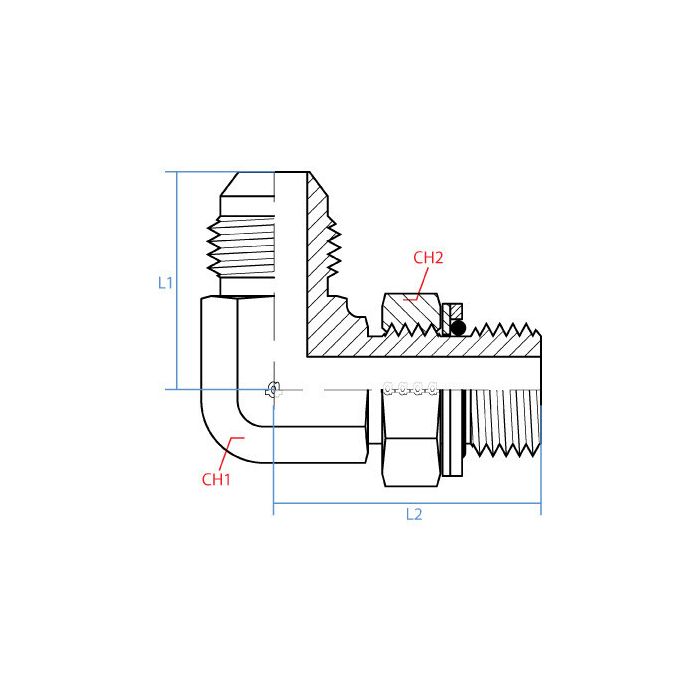

CH1 Width 22mm	CH2 Width 26mm	L1 Length 35mm	L2 Length 43mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-08-08	Product Weight 0.35 lbs

Product Questions & Answers

trying to hook up a 1/2in JIC hose end to a G 1/2 BSPP port, is this the right elbow?

Question by: Warren T on Aug 21, 2025, 5:37 PM

For that mix of threads, yes. One side is a 3/4 - 16 UNF male JIC and the other side is a G 1/2 - 14 male BSPP, both in the 1/2 inch size.

Answer by: Customer Support on Aug 23, 2025, 10:31 AM
