Ss316 90*Adj.Elb Mjic X Mbspp

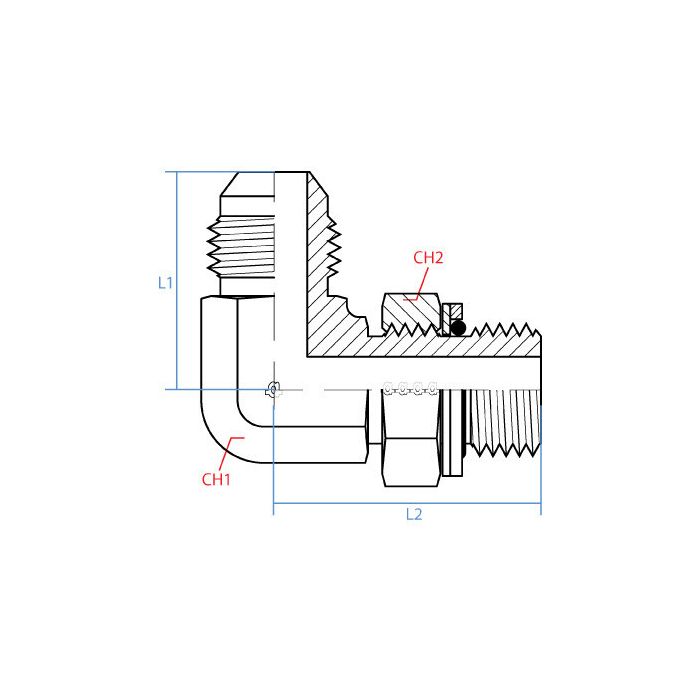

CH1 Width 19mm	CH2 Width 22mm	L1 Length 33mm	L2 Length 38mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-08-06	Product Weight 0.35 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine with a 3/8 BSPP port and I need to swing the line off at a 90 but the JIC side has to land at 1/2 inch. This fitting do that?

Question by: Roger H on Dec 22, 2025, 1:04 PM

Yeah, that's exactly what this one's built for. One end is a 3/4-16 UNF Male JIC, which is the standard thread for a 1/2" JIC connection, and the other end is a Male BSPP at G 3/8-19. The 90-degree elbow is adjustable, so you can clock the outlet to whatever angle works before you lock it down during installation. Stainless 316 construction throughout.

Answer by: Customer Support on Dec 23, 2025, 5:03 PM
