Ss316 90*Adj. Elb Mjic X Mbspp

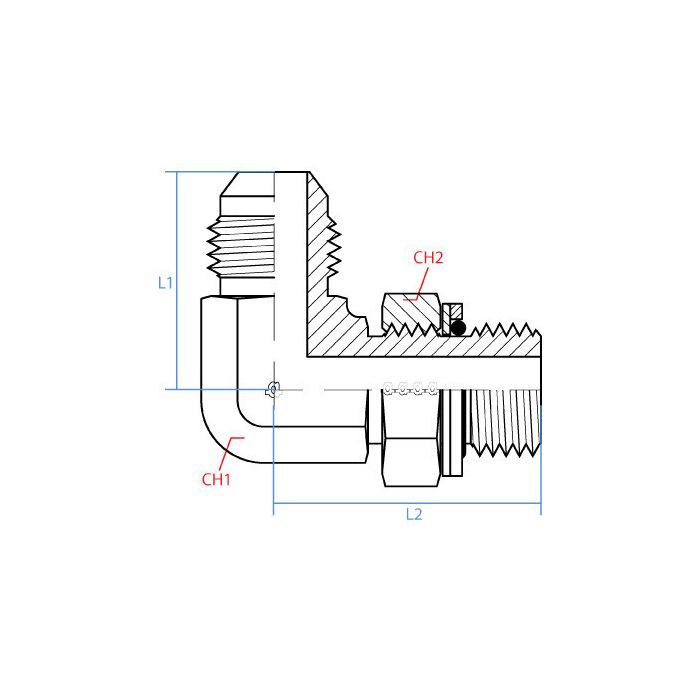

CH1 Width 19mm	CH2 Width 22mm	L1 Length 30mm	L2 Length 38mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1GK62	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-06-06	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a system running BSPP ports on the equipment side and JIC lines coming off the pump, would this fitting bridge that gap without needing an adapter stack?

Question by: Peggy S on Jul 20, 2025, 9:00 PM

That's exactly the kind of situation this fitting handles. One end is a 3/8" male JIC (9/16-18 UNF) and the other is a 3/8" male BSPP (G 3/8-19), so it connects those two thread standards directly in a single piece. No stacking adapters, no extra potential leak points. Both sides are the same nominal 3/8" size, so the flow path stays consistent through the joint.

Answer by: Customer Support on Jul 22, 2025, 6:12 AM

trying to swap a fitting on a hose, is this one 3/8 JIC on one side and 3/8 BSPP on the other?

Question by: Brent H on Jun 2, 2025, 6:43 AM

Thread-wise, it is a 3/8 inch male JIC on one end with a 9/16-18 UNF callout, and a 3/8 inch male BSPP on the other with a G 3/8-19 callout.

Answer by: Customer Support on Jun 4, 2025, 6:43 AM
