Ss316 90*Adj. Elb Mjic X Mbspp

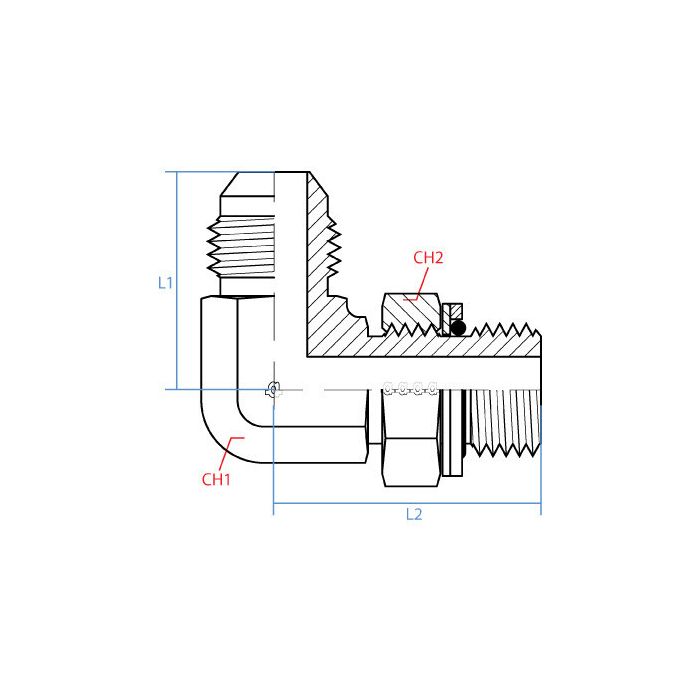

CH1 Width 14mm	CH2 Width 19mm	L1 Length 29.5mm	L2 Length 25.6mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-06-04	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/8 jic hose end to a 1/4 bspp port, is this the right elbow for that?

Question by: Bobby H on Mar 14, 2026, 11:29 AM

For that kind of cross thread hookup, it matches up as a 90 degree adjustable elbow with a 3/8 inch male JIC end (9/16-18 UNF) on one side and a 1/4 inch male BSPP end (G 1/4-19) on the other.

Answer by: Customer Support on Mar 15, 2026, 1:41 PM

Got a piece of equipment running BSPP ports and the hose side is JIC, this fitting cross those two over, or am I lookin at the wrong part?

Question by: Daryl C on Mar 21, 2026, 10:36 AM

That's exactly what this one's built for. One end is a 3/8" male JIC with a 9/16-18 UNF thread, and the other end is a 1/4" male BSPP running G 1/4-19. So if you've got a JIC hose assembly needing to tie into a BSPP port, this gets you there without fabricating something custom.

Answer by: Customer Support on Mar 22, 2026, 4:38 PM
