Ss316 90*Adj. Elb Mjic X Mbspp

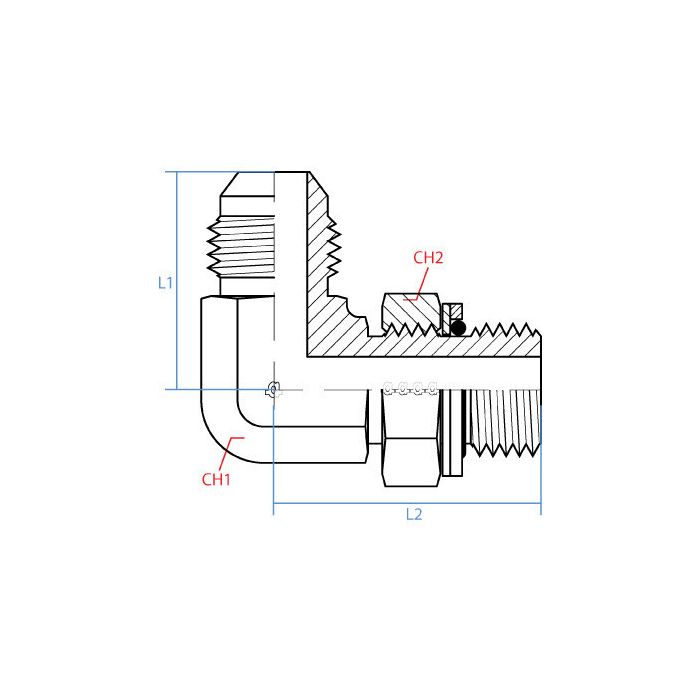

CH1 Width 14mm	CH2 Width 19mm	L1 Length 28mm	L2 Length 33mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1GK61, Alternate Part Number SS9509-0404	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-04-04	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s 7/16-20 JIC male, will this elbow match up on that side?

Question by: Travis R on Feb 7, 2026, 7:26 PM

For the JIC side, it uses a 7/16 - 20 UNF male MJIC connection in a 1/4 inch size, so it matches a 7/16-20 JIC female swivel that’s meant for a 1/4 inch JIC.

Answer by: Customer Support on Feb 8, 2026, 9:47 PM
