Ss316 90*Adj. Elb Mjic X Mbspp

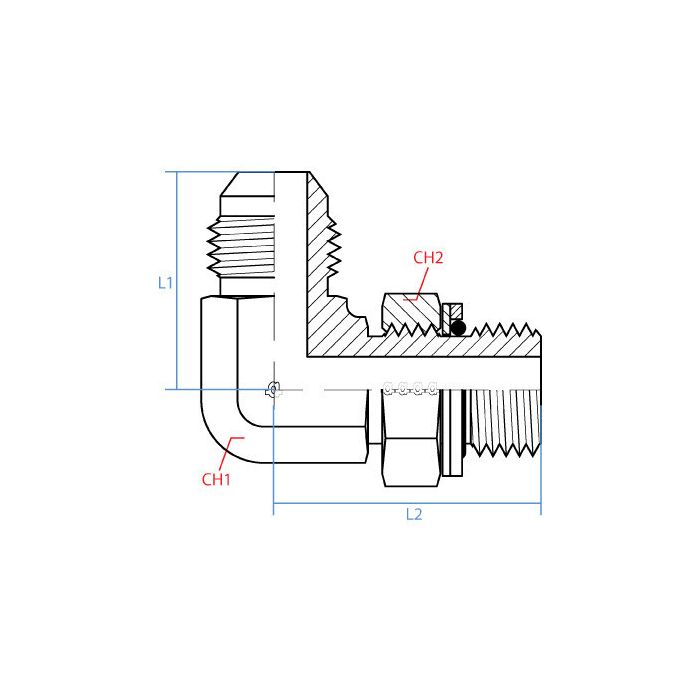

CH1 Width 12mm	CH2 Width 14mm	L1 Length 24mm	L2 Length 28mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-04-02	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 1/4 jic line into a 1/8 BSPP port, is that what this elbow is for?

Question by: Wayne R on Mar 5, 2026, 1:09 PM

For that exact mix of thread types, it matches up as a 90 degree adjustable elbow with a male JIC on one end and a male BSPP on the other. Side 1 is male JIC 7/16 - 20 UNF in a 1/4 inch size, and side 2 is male BSPP G 1/8 - 28 in a 1/8 inch size.

Answer by: Customer Support on Mar 7, 2026, 7:17 AM
