Ss316 90*Tube M.Bspp X F.Bspp SS9045-08-08

Specifications

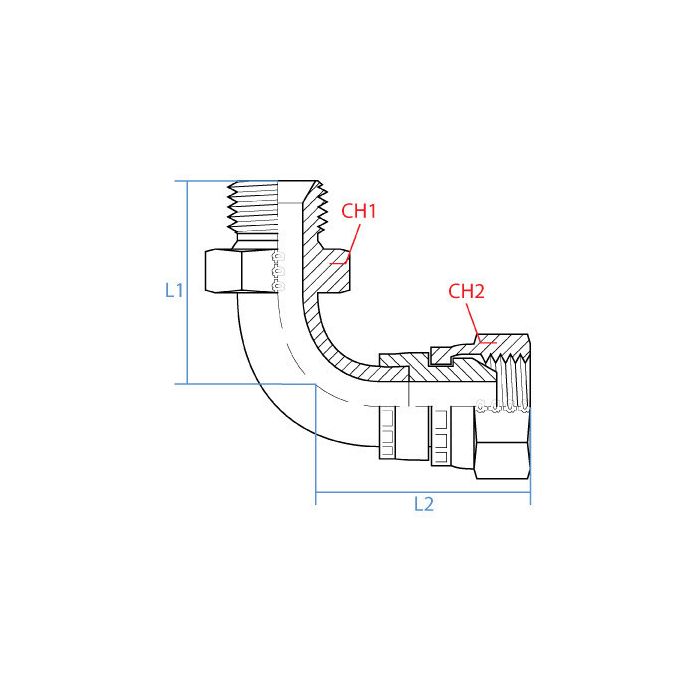

CH1 Width 27mm	CH2 Width 27mm	L1 Length 48mm	L2 Length 47mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9045-08-08	Product Weight 0.34 lbs

Product Questions & Answers 3

Product Questions & Answers

How tight should I make the connections on this thing? I don't want to strip 'em.

Question by: Dale P on Apr 25, 2025, 8:50 PM

These fittings have standard BSPP threads, so snug them up until they're secure but avoid excessive force. You're aiming for a leak-free seal without damaging the threads.

Answer by: Customer Support on Apr 27, 2025, 8:08 AM

got a 1/2 inch BSPP male port and need to turn it 90 degrees into a 1/2 inch BSPP female, is this the right elbow?

Question by: Cindy W on Jun 1, 2025, 10:21 AM

For a 90 degree change of direction between BSPP threads, it matches up as G 1/2 - 14 male on one side and G 1/2 - 14 female on the other, so it adapts a 1/2 inch male BSPP connection to a 1/2 inch female BSPP connection.

Answer by: Customer Support on Jun 3, 2025, 6:51 AM

fitting's got a 90-degree angle on it, right? trying to route a half-inch BSPP line around a corner without a bunch of extra adapters in the way

Question by: Todd H on Oct 8, 2025, 5:19 PM

the 90-degree elbow shape is built right into this fitting. Both ends are 1/2 inch BSPP, with the male end on one side and the female end on the other, so you can change direction on a single BSPP run without stacking extra pieces. The G 1/2-14 thread callout is the same on both ends, which keeps the connection straightforward when you're working in a tight spot.

Answer by: Customer Support on Oct 10, 2025, 10:15 AM
