Stainless 316 Mnpt X Fbspp SS9037-04-04

Specifications

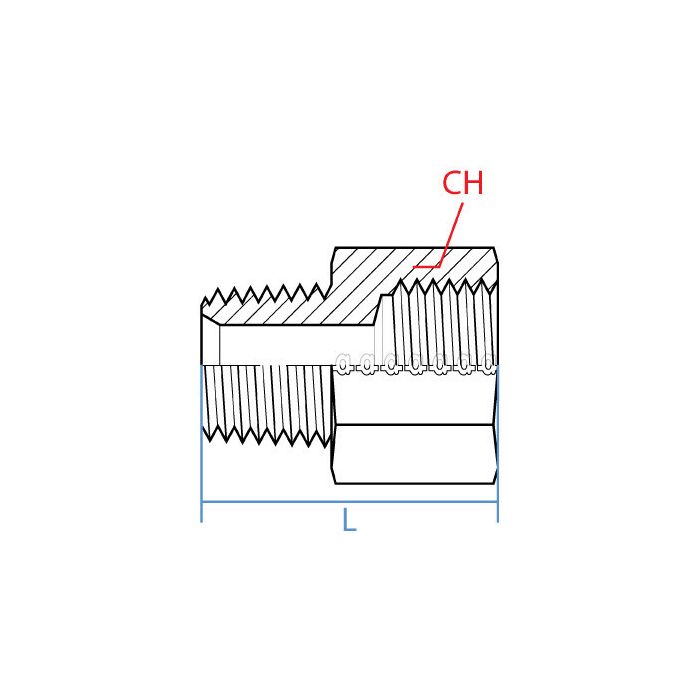

CH Width 19mm	L Length 35.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1/4 - 18 NPTF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Npt	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9037-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this would work for hooking up a pressure gauge to my hydraulic pump?

Question by: Troy M on Aug 3, 2025, 6:08 AM

This adapter is designed to connect a 1/4" male NPT thread to a 1/4" female BSPP thread, which could work for your pressure gauge if those are the connections you're dealing with.

Answer by: Customer Support on Aug 4, 2025, 9:06 PM

got a piece of equipment here with a BSPP port and the rest of the system runs NPT, this the kind of fitting that bridges those two?

Question by: Rick H on Sep 29, 2025, 9:30 PM

Exactly what this adapter is built for. One end is 1/4" male NPT (1/4-18 NPTF) and the other is 1/4" female BSPP (G 1/4-19), so it connects those two thread standards directly without needing additional components. Both sides are 1/4" size, and the straight configuration keeps things simple when you're working in a tight spot. Overall length is 35.1mm, so it won't add much bulk to the assembly.

Answer by: Customer Support on Oct 1, 2025, 11:23 AM

got a valve block with a 1/4-18 nptf port and the hose end is g 1/4-19 female. is this the right little adapter to marry those up?

Question by: Freddie F on Jun 17, 2025, 7:26 AM

For that exact thread mix, yes. One side is 1/4 inch male NPTF (1/4-18) and the other side is 1/4 inch female BSPP (G 1/4-19), so it is meant to transition between NPT and BSPP in a straight adapter.

Answer by: Customer Support on Jun 19, 2025, 6:09 AM
