Stainless 316 Mnpt X Fbspp

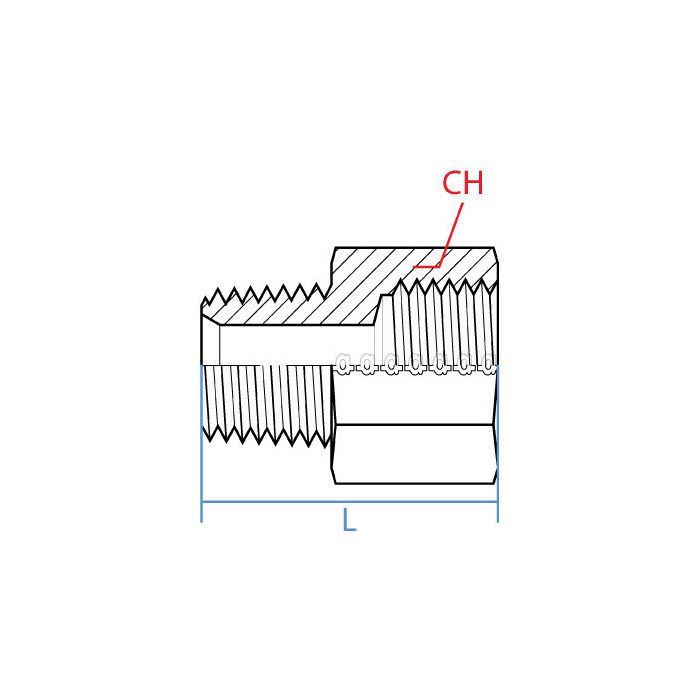

CH Width 14mm	L Length 27.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1/8 - 27 NPTF	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Npt	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9037-02-02	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook up some NPT fittings to a BSPP port on a piece of equipment we got from overseas, would this adapter handle that swap?

Question by: Donna M on Dec 17, 2025, 10:53 AM

Yeah, that's exactly what this one's for. One end is 1/8" male NPT and the other is 1/8" female BSPP, so it bridges those two thread standards in a straight-line connection. Both sides are 1/8" in size, which keeps things clean if your ports match up. The fitting itself is 316 stainless, so corrosion resistance is solid if you're running it somewhere that sees moisture or harsh fluids.

Answer by: Customer Support on Dec 19, 2025, 6:59 AM

Will this fitting work with both NPT and BSPP threads?

Question by: Ricky W on Aug 12, 2025, 7:42 PM

this adapter has a male NPT end and a female BSPP end, so it's made to connect those different thread types.

Answer by: Customer Support on Aug 14, 2025, 8:42 AM
