Stainless 316 Mbspp X Fnpt

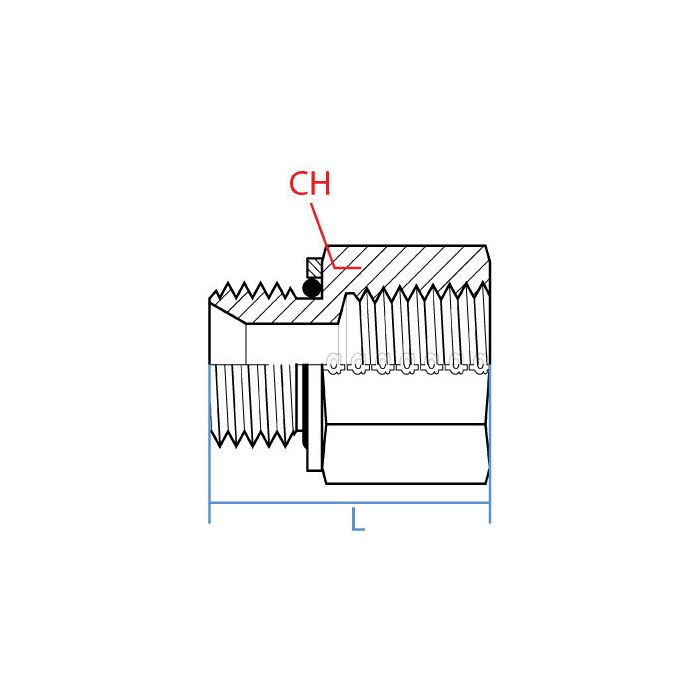

CH Width 16mm	L Length 24.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9035S-02-02	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a BSPP male fitting on a piece of equipment and need to tie into a female NPT port, this straight adapter do the trick?

Question by: Tammy H on May 21, 2025, 9:29 PM

That's exactly what this one's built for. One end is a G 1/8-28 Male BSPP and the other is a 1/8-27 Female NPTF, so it bridges that specific thread type mismatch in a straight-through configuration. Both sides are 1/8 inch, and the overall length runs 24.6mm with a 16mm wrench width, so it fits in tighter spots without much trouble. Made by Adaptall from 316 stainless, it holds up well where corrosion is a concern.

Answer by: Customer Support on May 23, 2025, 11:38 AM
