Stainless Mbspp X Fnpt SS9035-02-04

Specifications

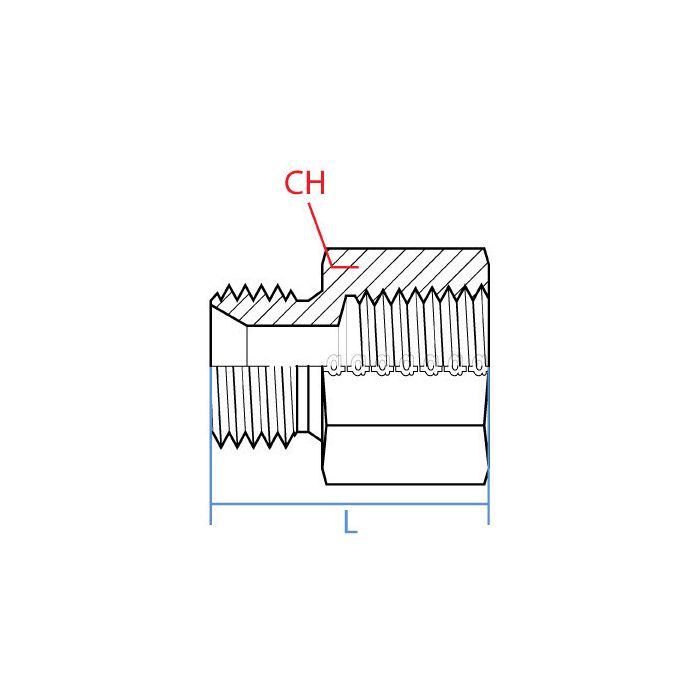

CH Width 19mm	L Length 32.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9035-02-04	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running BSPP fittings on one end and NPT on the other, will this adapter actually bridge them two without needing extra stuff in between?

Question by: Rod B on Mar 30, 2026, 6:28 PM

That's what it's built for. One side is a male G 1/8 - 28 BSPP thread and the other is a female 1/4 - 18 NPTF thread, so it connects those two standards directly in a single fitting. No additional adapters needed between the two thread types. The stainless steel construction holds up well in industrial fluid transfer setups, and the straight profile keeps things clean and compact at 32.1mm long.

Answer by: Customer Support on Apr 1, 2026, 4:58 PM

Reckon this adapter will hold up okay in a humid environment?

Question by: Dwight J on Mar 3, 2026, 12:47 PM

Constructed from stainless steel, this adapter offers excellent corrosion resistance, making it well-suited for humid environments.

Answer by: Customer Support on Mar 5, 2026, 8:40 AM

got a male G 1/8 - 28 port on one side and need to land a 1/4 - 18 NPTF female on the other. is that what this adapter does?

Question by: Tony S on Jun 27, 2025, 6:59 PM

For tying two thread styles together, it converts a male BSPP on Side 1 (G 1/8 - 28) over to a female NPTF on Side 2 (1/4 - 18).

Answer by: Customer Support on Jun 29, 2025, 6:24 AM
