Ss316 Female Jic Union SS9026-12-12

Specifications

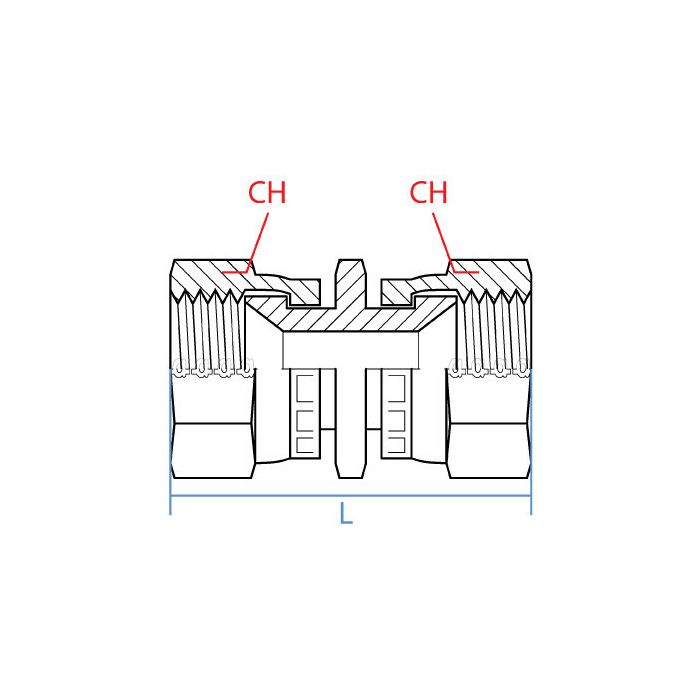

CH1 Width 32mm	CH2 Width 32mm	L Length 61mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9026-12-12	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

What size are the wrench flats on this union? Just need to make sure my tools will fit before I order.

Question by: Patty W on Nov 5, 2025, 9:04 PM

Those wrench flats measure 32mm on each side, making it easy to tighten with standard tools.

Answer by: Customer Support on Nov 7, 2025, 7:58 PM

trying to tie two 3/4 jic male ends together in a straight shot, is this the right union?

Question by: Brent J on Jul 4, 2025, 11:44 AM

For joining two male JIC terminations, this union is set up with female JIC on both sides. Each end is 3/4 inch JIC with a 1-1/16-12 UN thread, so it matches up cleanly when both sides are the same size and thread.

Answer by: Customer Support on Jul 6, 2025, 10:07 AM

both sides are 3/4 JIC female, so what exactly sits in the middle connecting them? trying to wrap my head around how this union works before I order

Question by: Brent A on Jun 14, 2025, 7:40 PM

Both ends of the fitting accept male JIC terminations, and the union body joins them inline in a straight configuration. So if you've got two hydraulic lines that each end in a male 3/4" JIC fitting, this piece connects them directly. The thread callout on each side is 1-1/16-12 UN, and the body runs 61mm long. Wrench flats are 32mm on both sides, so you can hold one end and tighten the other without the whole fitting spinning on you.

Answer by: Customer Support on Jun 16, 2025, 6:13 AM
