Ss316 Female Jic Union

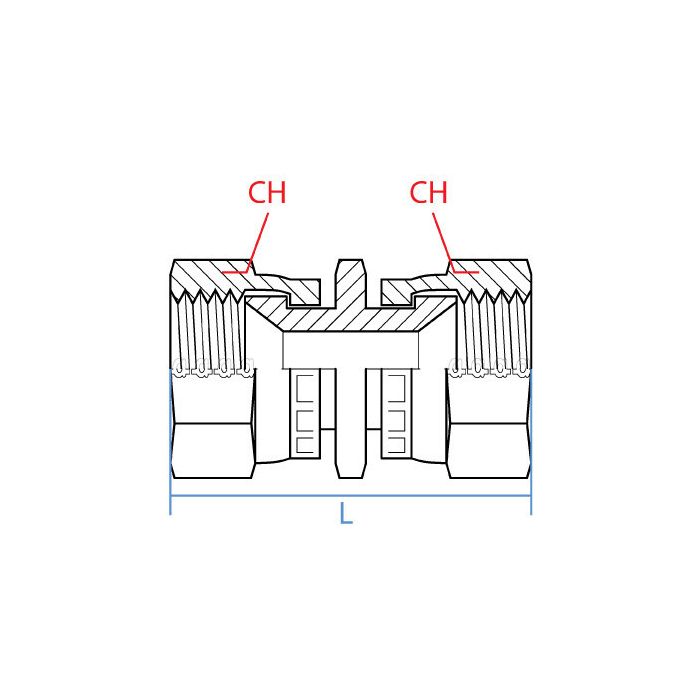

CH1 Width 22mm	CH2 Width 22mm	L Length 48mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size L06	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9026-08-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this'll hold up alright outside? Don't want it rusting on me.

Question by: Phil F on Aug 9, 2025, 10:07 AM

Being made from 316 stainless, it offers good corrosion resistance for use with moisture, chemicals, or other aggressive media.

Answer by: Customer Support on Aug 10, 2025, 7:45 PM

got two 1/2" female JIC hose ends i need to join straight together. is this the right union?

Question by: Hugh R on Jul 20, 2025, 9:01 PM

For tying two same size female JIC ends together in a straight run, this union matches that setup. It is female JIC on both sides with 3/4-16 UNF threads, which corresponds to a 1/2 inch JIC fitting size.

Answer by: Customer Support on Jul 22, 2025, 8:14 PM
