Stainless 316 Mjic X Mbspt

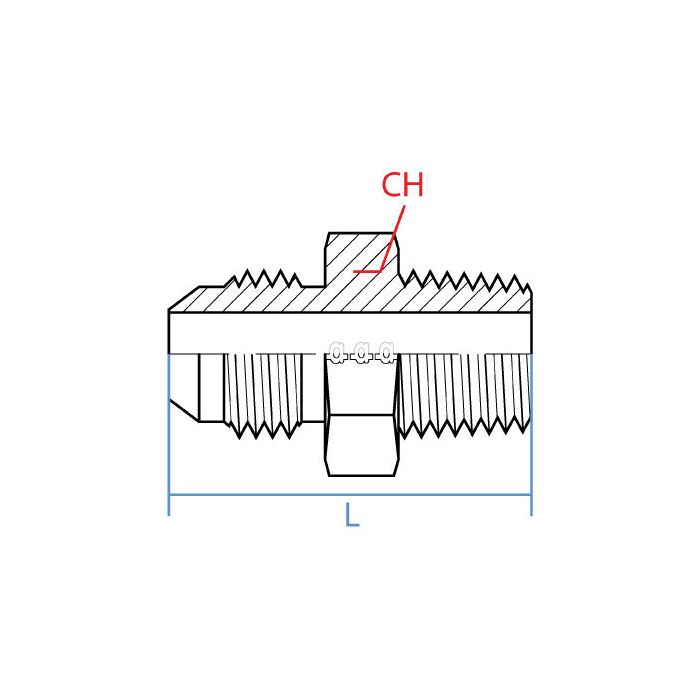

CH Width 28.5mm	L Length 54.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9011-12-12	Product Weight 0.28 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end thats 1-1/16 12 jic male on one side and i need to jump over to 3/4 bsp taper. is this the right adapter?

Question by: Jerry C on Jul 31, 2025, 3:16 PM

For tying those two thread standards together, this fitting matches a 1-1/16 - 12 UN JIC male on one end and an R 3/4 - 14 BSPT male on the other, both in the 3/4 inch size.

Answer by: Customer Support on Aug 1, 2025, 4:13 PM
