Stainless Mjic X Mbspt SS9011-08-12

Specifications

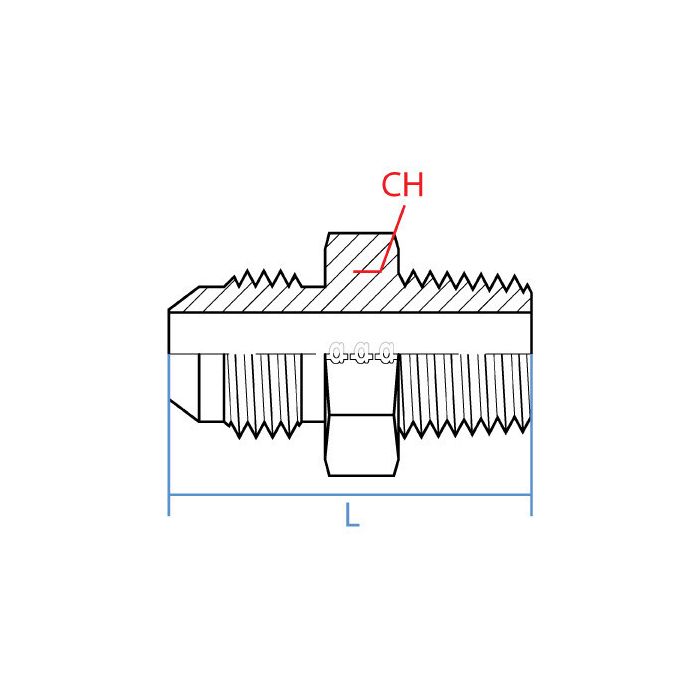

CH Width 27mm	L Length 50.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9011-08-12	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC, will this adapter mate up to it on one side?

Question by: Eddie A on Dec 9, 2025, 10:33 AM

On the JIC side, it has a male JIC thread with a 3/4-16 UNF callout, listed as a 1/2 inch size. That matches a 3/4-16 UNF JIC female swivel connection.

Answer by: Customer Support on Dec 10, 2025, 4:26 PM

Got a hydraulic line running BSPT on one end and JIC on the other, this thing gonna bridge that gap without a bunch of adapter stacking?

Question by: Marvin C on Feb 16, 2026, 8:09 AM

That's exactly what it's built for. One side threads into a 3/4-14 BSPT male port, and the other end is a male JIC with a 3/4-16 UNF thread. Both connections are on the same straight body, so you get a clean single-piece solution instead of chaining multiple fittings together. The stainless steel construction also holds up well in environments where corrosion is a concern.

Answer by: Customer Support on Feb 17, 2026, 6:31 PM

Will this fitting hold up if I'm using it for hydraulic fluid?

Question by: Lee M on Nov 13, 2025, 2:08 PM

Constructed from stainless steel, this fitting offers enhanced durability and corrosion resistance, making it suitable for use with hydraulic fluid.

Answer by: Customer Support on Nov 15, 2025, 7:30 AM
