Stainless 316 Mjic X Mbspt SS9011-08-08

Specifications

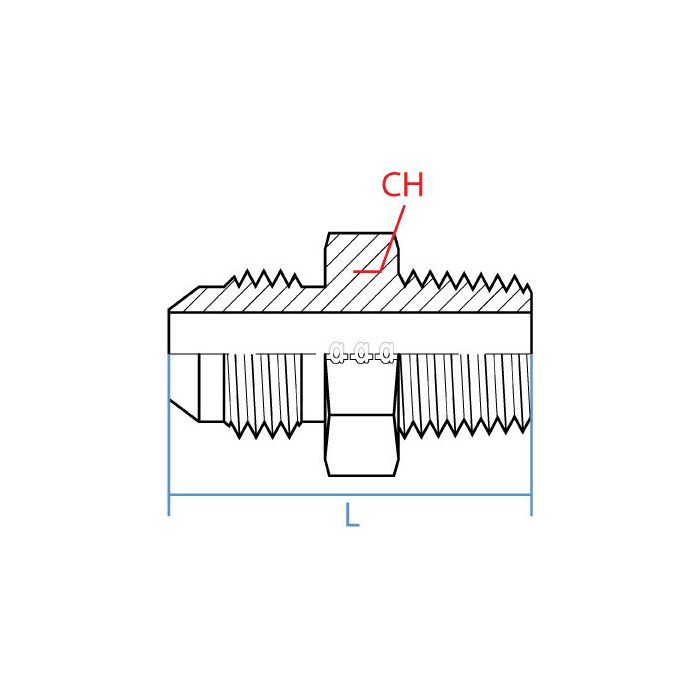

CH Width 22mm	L Length 43.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9011-08-08	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with a BSPT port on it and I need to tie it into a JIC line, this a straight-through adapter or does it got some kind of angle to it?

Question by: Darryl C on Jan 27, 2026, 7:59 AM

Straight through, no angle. Both ends are male, one side is 1/2" JIC on a 3/4-16 UNF thread, the other is 1/2" BSPT on an R 1/2-14 thread. It sits inline between the two connections without any directional offset, so it'll work fine wherever you've got a clean straight run between those two thread standards.

Answer by: Customer Support on Jan 28, 2026, 2:56 PM

So, this thing connects different threads, right? JIC to BSPT? Just wanna make sure I'm understanding it correctly before I order.

Question by: Jean R on Jul 29, 2025, 5:00 PM

That's right. It's designed to connect a 1/2" Male JIC (3/4–16 UNF) fitting to a 1/2" Male BSPT (R 1/2–14) thread.

Answer by: Customer Support on Jul 30, 2025, 6:16 PM

got a hose end that’s 1/2 male JIC, will this adapter screw right into a 1/2 male BSPT port?

Question by: Ralph M on Jan 14, 2026, 6:28 PM

Function-wise, it is a straight Adaptall adapter that bridges those two thread standards in one inline fitting. One side is 1/2 inch Male JIC with 3/4 to 16 UNF threads, and the other side is 1/2 inch Male BSPT with R 1/2 to 14 threads.

Answer by: Customer Support on Jan 15, 2026, 9:16 PM
