Stainless 316 Mjic X Mbspt SS9011-04-04

Specifications

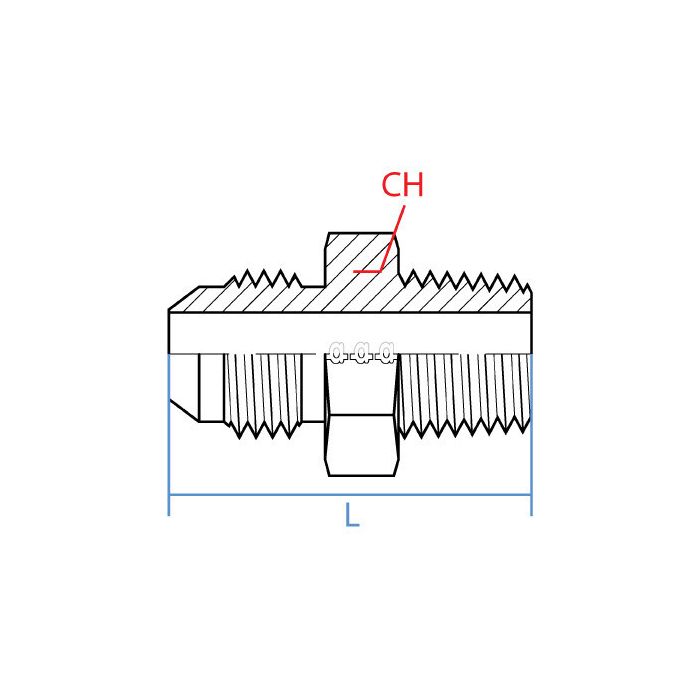

CH Width 16mm	L Length 36.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number C1GK60	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9011-04-04	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running 1/4" JIC on one end that needs to tie into a BSPT port, this adapter do that straight through?

Question by: Peggy H on Feb 15, 2026, 4:32 PM

That's what this fitting is built for. One end is 1/4" male JIC with a 7/16-20 UNF thread, and the other is 1/4" male BSPT running an R 1/4-19 thread. Straight configuration, no bends or offsets. The overall length comes in at 36.9mm, so it's a compact connection without a lot of added hydraulic connections distance.

Answer by: Customer Support on Feb 17, 2026, 8:15 AM

trying to hook up a 1/4 jic hose end to a 1/4 bspt port. is this the right adapter

Question by: Merle H on Jun 27, 2025, 9:02 AM

For that kind of hookup, it matches a 1/4 inch male JIC thread (7/16-20 UNF) on one side and a 1/4 inch male BSPT thread (R 1/4-19) on the other, in a straight configuration.

Answer by: Customer Support on Jun 28, 2025, 9:20 AM

Is this fitting made of regular stainless steel or the 316 stuff?

Question by: Carl G on Jun 6, 2025, 9:55 AM

It's made of 316 stainless, which is a more durable grade.

Answer by: Customer Support on Jun 8, 2025, 6:36 AM
