Stainless 316 Mjic X Mbspt SS9011-04-02

Specifications

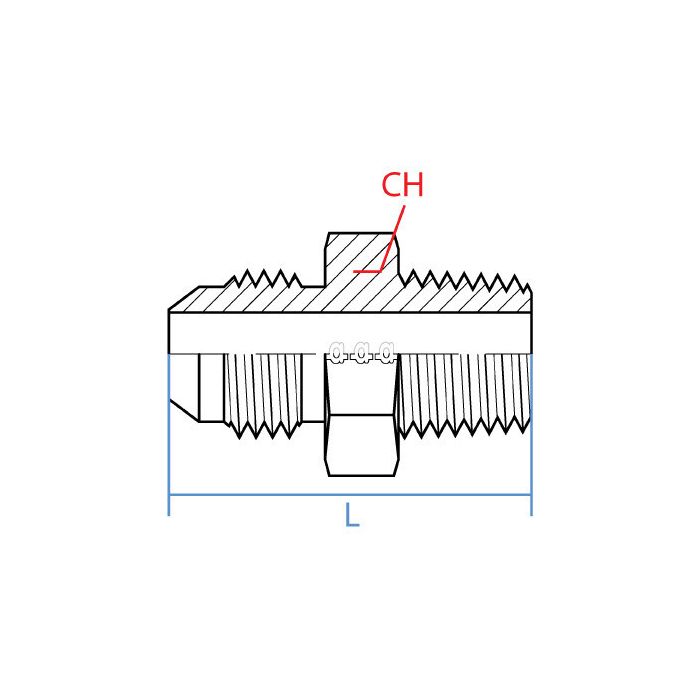

CH Width 13mm	L Length 32.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9011-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 1/4" JIC male fitting on my hydraulic line and need to tie into a 1/8 BSPT port, this the right adapter for that?

Question by: Stan M on Nov 1, 2025, 4:39 PM

Yeah, that's exactly what this fitting is built for. One end is a 7/16-20 UNF male JIC thread, which corresponds to a 1/4" JIC connection, and the other end is an R 1/8-28 male BSPT. So if you've got a female JIC on your line and a female BSPT port on the component you're connecting to, this one drops right in.

Answer by: Customer Support on Nov 3, 2025, 8:18 AM

trying to swap a fitting on a line, is this one male JIC to male BSPT and what sizes are we talkin

Question by: Gary W on Jan 26, 2026, 12:57 PM

Built as a straight adapter, it connects a male JIC on side 1 to a male BSPT on side 2. Side 1 is 7/16-20 UNF (JIC, 1/4 inch size) and side 2 is R 1/8-28 (BSPT, 1/8 inch size).

Answer by: Customer Support on Jan 27, 2026, 8:23 PM

Will this here fitting hold up if I'm running some pretty serious pressure through it?

Question by: Troy R on Apr 30, 2025, 9:35 AM

Constructed from stainless 316, this fitting is designed to maintain a reliable seal even in high-pressure hydraulic applications. It's built to handle demanding conditions, giving you a secure connection.

Answer by: Customer Support on May 1, 2025, 4:14 PM
