Stainless 316 Mbspp X Mnpt

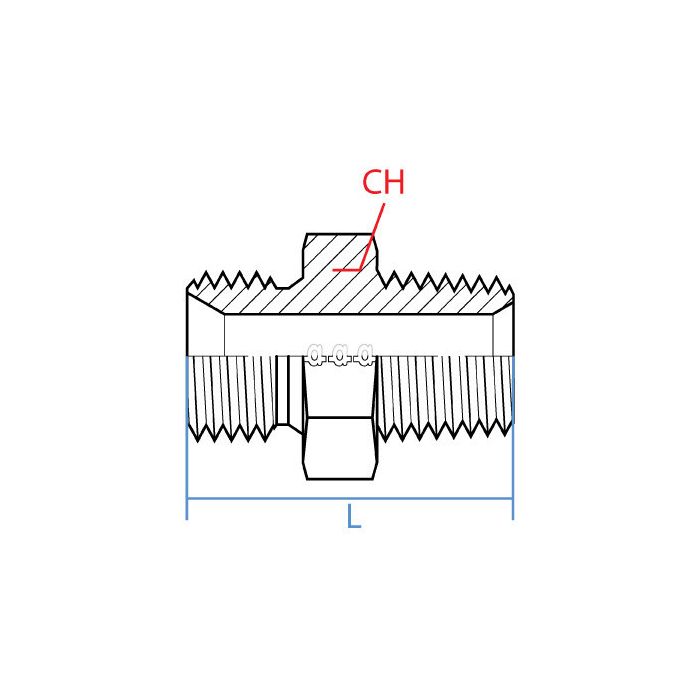

CH Width 27mm	L Length 43.3mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9007-08-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment with a BSPP port but my line runs NPT fittings, will this adapter actually bridge them two thread types without needing anything else in between?

Question by: Lance B on Apr 18, 2025, 5:51 PM

That's what this one's built for. One end is G 1/2-14 Male BSPP and the other is 1/2-14 Male NPTF, so it goes straight from a BSPP port to an NPT connection in a single fitting. No extra pieces, no union in the middle. The straight body keeps everything tight and in-line, which helps when space is a little tight in the circuit.

Answer by: Customer Support on Apr 19, 2025, 8:25 PM

Will this adapter work to connect a BSPP fitting to an NPT one? Seems like a handy solution if it does.

Question by: Harvey A on Dec 20, 2025, 11:43 AM

This straight hydraulic adapter is indeed designed to connect a 1/2" Male BSPP thread to a 1/2" Male NPTF thread. It provides a practical and reliable connection between these two different thread types in hydraulic systems.

Answer by: Customer Support on Dec 21, 2025, 2:53 PM
