Stainless 316 Mbspp X Mnpt SS9007-06-04

Specifications

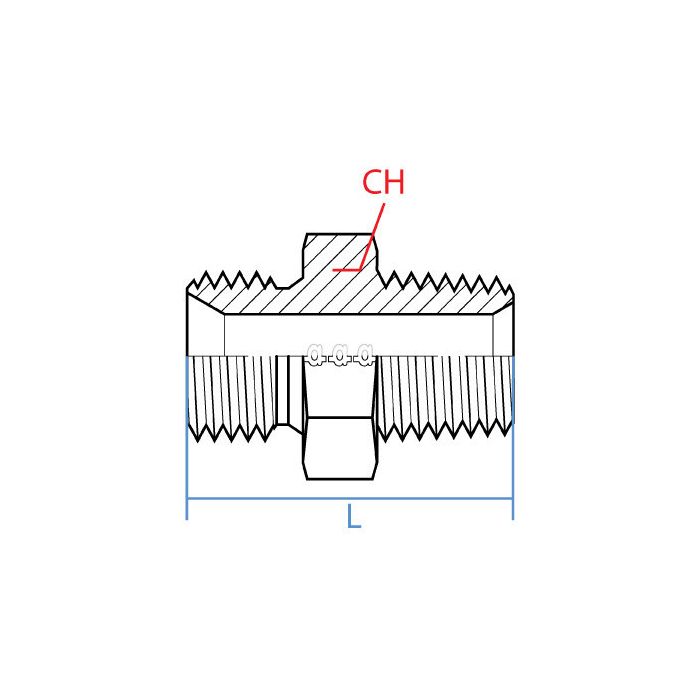

CH Width 22mm	L Length 34.2mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9007-06-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a G 3/8 line into a 1/4 NPT port. is this the straight adapter for that?

Question by: Randy T on Jun 6, 2025, 9:30 AM

For that mix of threads, it matches up: side 1 is a male BSPP (G) 3/8 with a G 3/8 - 19 callout, and side 2 is a male 1/4 - 18 NPTF. It is a straight Adaptall fitting.

Answer by: Customer Support on Jun 7, 2025, 6:43 PM

Will this fitting hold up to hydraulic pressures, or is it more for low-pressure stuff?

Question by: Hugh P on Sep 26, 2025, 9:15 PM

This fitting, crafted from 316 stainless steel, is designed to provide a reliable connection in hydraulic applications.

Answer by: Customer Support on Sep 28, 2025, 6:55 PM

fitting's got a 3/8 BSPP side and I need to tie into a 1/4 NPT port on a pump housing. this the right one for that?

Question by: Hugh C on May 29, 2025, 8:48 PM

That match lines up exactly with what this fitting does. The BSPP side is a G 3/8-19 male connection and the NPT side is a 1/4-18 NPTF male, so you'd be going from the larger 3/8 BSPP thread into the smaller 1/4 NPT port. Just make sure your pump housing is female NPT and your upstream fitting or valve is female BSPP, since both ends here are male.

Answer by: Customer Support on May 31, 2025, 7:16 PM
