Stainless 316 Mbspp X Mnpt

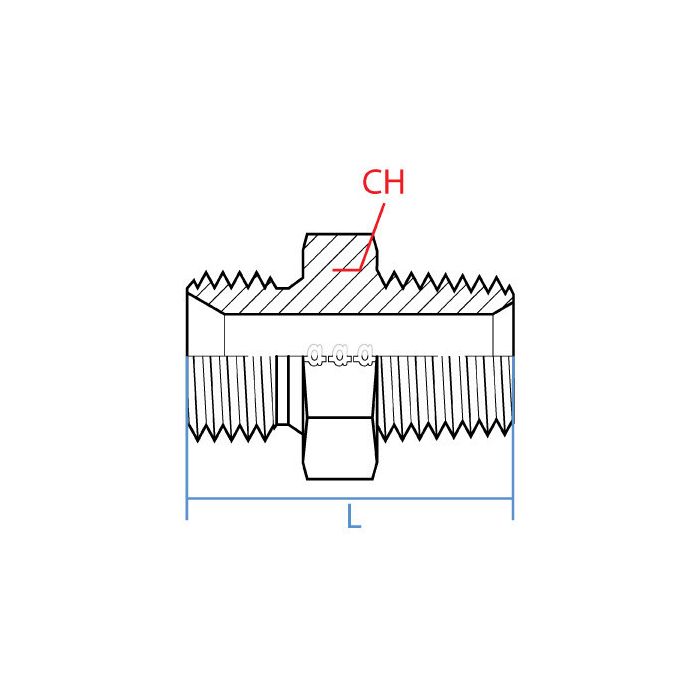

CH Width 14mm	L Length 28.3mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9007-02-02	Product Weight 0.03 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment here that runs BSPP fittings on the hydraulic block but the rest of the system is all NPT, will this adapter actually bridge those two thread standards without needing a bunch of extra parts?

Question by: Debbie C on Aug 9, 2025, 1:10 PM

That's what this one's built for. One end is G 1/8-28 BSPP, the other is 1/8-27 NPT, so it goes straight between those two thread types in a single fitting. Both sides are 1/8" which keeps the transition clean with no reduction in port size. At 28.3mm long and 14mm wrench width, it stays compact enough to work in tighter spots on a hydraulic block without fighting for clearance.

Answer by: Customer Support on Aug 11, 2025, 8:08 AM
