Stainless Mjic X Mbspp SS9005-08-08

Specifications

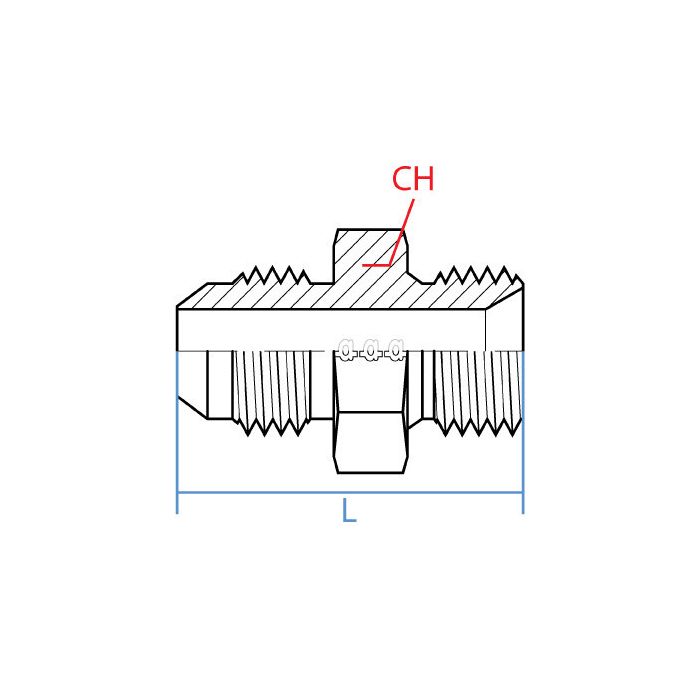

CH Width 27mm	L Length 42mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-08-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work to hook up a JIC line to somethin' with a BSPP thread? They're both gonna be 1/2 inch.

Question by: Lyle R on May 4, 2025, 4:24 PM

It sure will. This adapter connects a 1/2" Male JIC fitting to a 1/2" Male BSPP fitting.

Answer by: Customer Support on May 6, 2025, 1:36 PM

got a hose end thats 1/2 jic male, will this adapter let me hook it to a 1/2 bspP male port?

Question by: Earl J on Aug 28, 2025, 11:30 AM

Fit comes down to the thread callouts. One end is a 1/2 inch Male JIC with 3/4-16 UNF threads, and the other end is a 1/2 inch Male BSPP with G 1/2-14 threads. It is meant to bridge a JIC connection over to a BSPP connection in a straight, inline setup.

Answer by: Customer Support on Aug 29, 2025, 7:17 PM

Got a piece of equipment running a 1/2" JIC port that needs to tie into a BSPP line, this straight adapter work for that?

Question by: Ralph R on Apr 26, 2025, 1:46 PM

That's what this fitting is built for. One end is 3/4-16 UNF Male JIC, the other is G 1/2-14 Male BSPP, both in 1/2" size. Straight configuration means no change in flow direction, so it drops right into an inline connection without any extra fittings. The stainless construction makes it a solid pick anywhere corrosion is a concern.

Answer by: Customer Support on Apr 27, 2025, 2:15 PM
