Stainless Mjic X Mbspp

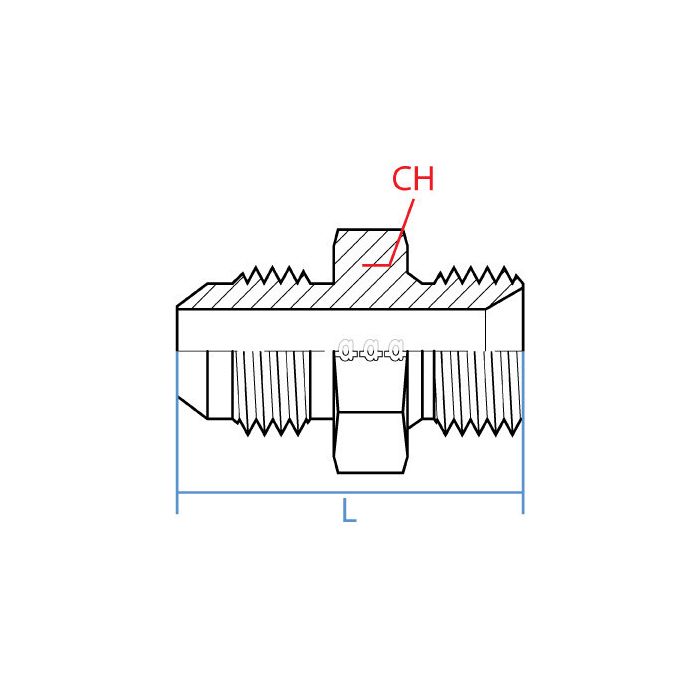

CH Width 27mm	L Length 38.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-06-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a JIC line to a BSPP port, is this the right adapter?

Question by: Howard P on Oct 20, 2025, 1:56 PM

It’s a straight stainless adapter made for exactly that kind of crossover. Side 1 is a male JIC in 3/8 size with 9/16-18 UNF threads, and side 2 is a male BSPP in 1/2 size with G 1/2-14 threads.

Answer by: Customer Support on Oct 21, 2025, 7:15 PM

Got a line running 3/8 JIC on one end and need to tie into a 1/2 BSPP port on a piece of imported equipment. this fitting do that job?

Question by: Frank B on Apr 7, 2025, 8:40 AM

That's what this adapter is built for. One end is a male 9/16-18 UNF JIC thread, which corresponds to a 3/8 JIC line, and the other end is a male G 1/2-14 BSPP thread for the 1/2 inch BSPP port. Both sides are male, so make sure your mating connections are female on both ends before ordering.

Answer by: Customer Support on Apr 9, 2025, 6:34 AM
