Stainless Mjic X Mbspp SS9005-06-06

Specifications

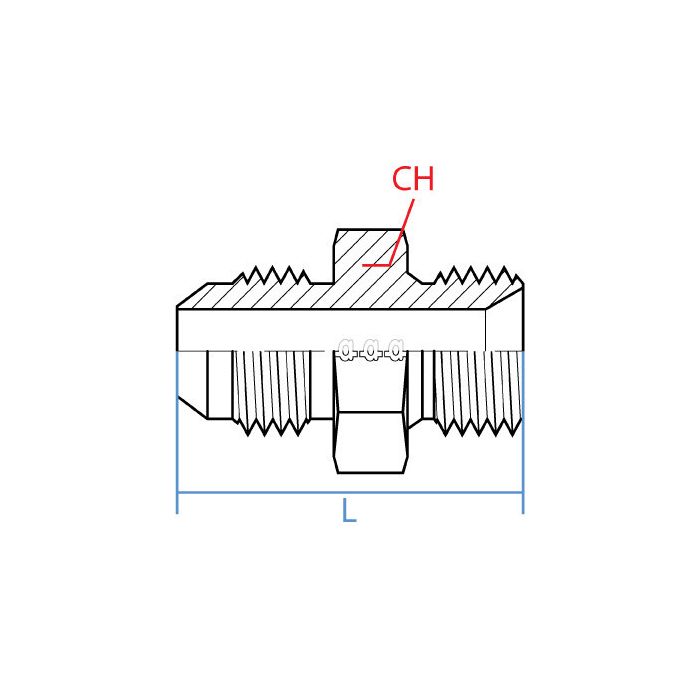

CH Width 22mm	L Length 35.2mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-06-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 9/16-18 JIC male, will this adapter mate up on that side?

Question by: Dean C on Sep 19, 2025, 5:10 PM

On Side 1 it has a 9/16 - 18 UNF male JIC connection, sized 3/8 inch, so it matches that JIC thread callout on the adapter’s JIC side.

Answer by: Customer Support on Sep 20, 2025, 8:01 PM

Will this thing hold up outside? We use hydraulic lines on our farm equipment and they take a beating.

Question by: Lynn W on Sep 17, 2025, 12:16 PM

The stainless steel construction is known for its corrosion resistance. It should provide a long service life, even in harsh environments.

Answer by: Customer Support on Sep 18, 2025, 8:22 PM

Got a line running G 3/8-19 BSPP on one end and JIC fittings on the other, this adapter bridge that gap without needing extra pieces in between?

Question by: Dwight C on May 3, 2025, 6:55 AM

That's what it's built for. One side is a 9/16-18 UNF male JIC and the other is a G 3/8-19 male BSPP, both at 3/8" sizing, so you get a direct male-to-male connection between those two thread standards in a single straight fitting. No extra unions or couplings needed.

Answer by: Customer Support on May 4, 2025, 2:45 PM
