Ss316 Mjic X Mbspp C/W O'Ring

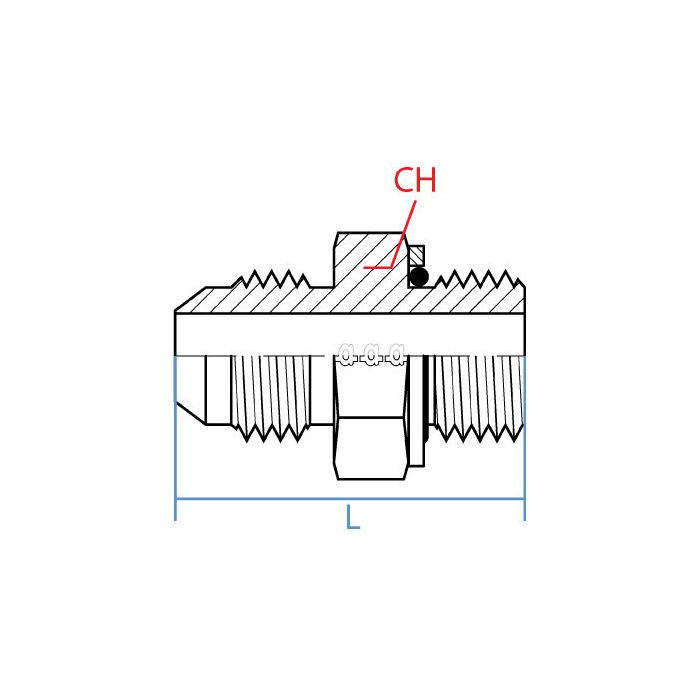

CH Width 36mm	L Length 50.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-12-12	Product Weight 0.38 lbs

Product Questions & Answers 2

Product Questions & Answers

I need a stainless adapter to go from JIC to BSPP, both male, and both 3/4 inch. Is this the right one?

Question by: Harold S on Jan 6, 2026, 9:32 AM

This Adaptall adapter is indeed what you're looking for. It has a 3/4" male JIC on one side and a 3/4" male BSPP on the other, all in 316 stainless.

Answer by: Customer Support on Jan 8, 2026, 6:23 AM

Got a BSPP port on a pump and need to tie into a JIC line, this straight adapter work for that?

Question by: Lyle B on Aug 19, 2025, 4:44 PM

That's what this fitting is built for. One end is male JIC at 1-1/16-12 UN thread, the other is male BSPP at G 3/4-14, and both sides are 3/4" nominal. The straight configuration puts them in-line with no offset, so as long as your port and your line match those thread specs, you've got a direct connection. The O-ring comes with it to seal up the BSPP end, so you're not hunting for one separately.

Answer by: Customer Support on Aug 21, 2025, 10:50 AM
