Ss316 Mjic X Mbspp C/W O'Ring SS9002-08-08

Specifications

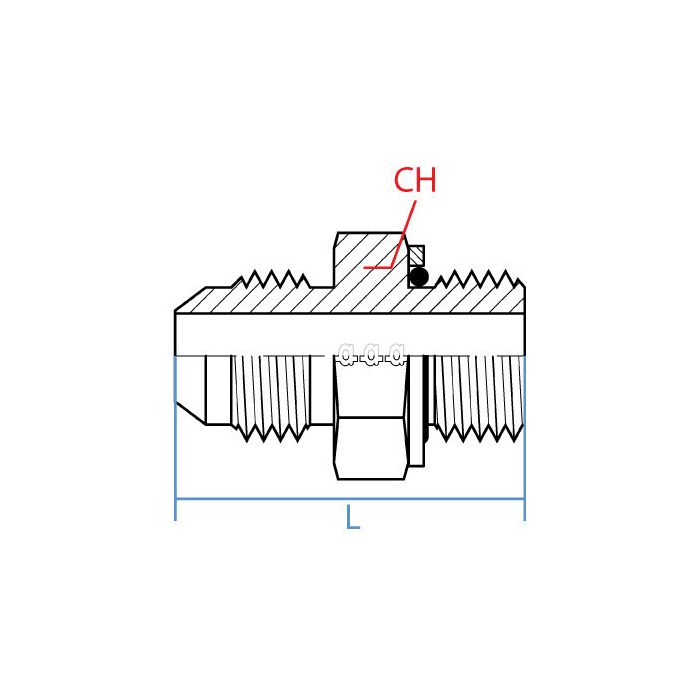

CH Width 27mm	L Length 41mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-08-08	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end with 3/4-16 UNF JIC male on it and need to go into G 1/2-14 BSPP. is that what this adapter’s for?

Question by: Rick H on Nov 10, 2025, 7:40 PM

For joining those two thread standards, it’s a straight stainless adapter with a 3/4 - 16 UNF male JIC on Side 1 and a G 1/2 - 14 male BSPP on Side 2, both in 1/2 inch size.

Answer by: Customer Support on Nov 12, 2025, 11:01 AM

Got a piece of equipment running a G 1/2 BSPP port on one end and a JIC fitting on the other, this adapter bridge that gap or am I looking at the wrong part?

Question by: Jimmy G on Aug 29, 2025, 2:48 PM

Right application for this one. The SS9002-08-08 puts a 3/4-16 UNF male JIC on one side and a G 1/2-14 male BSPP on the other, so it connects those two thread standards directly in a straight inline configuration. Both sides are 1/2 inch nominal size, and the O-ring on the BSPP end handles the seal without needing thread tape or any additional sealant.

Answer by: Customer Support on Aug 30, 2025, 8:26 PM

What kinda steel is this made from, and will it hold up if I'm usin' it outside?

Question by: Donna C on Oct 28, 2025, 6:14 PM

Crafted from high-quality stainless steel, this adapter offers exceptional durability for demanding environments.

Answer by: Customer Support on Oct 30, 2025, 2:55 PM
