Ss316 Mjic X Mbspp C/W O'Ring

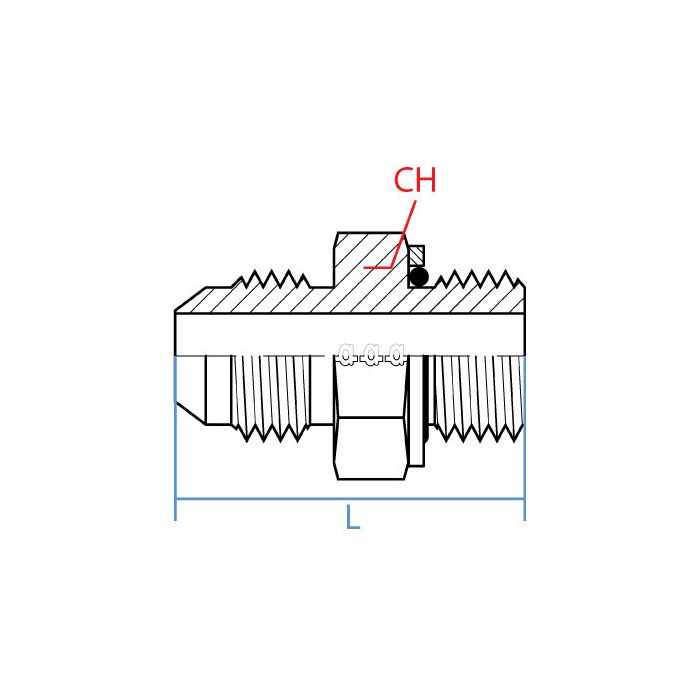

CH Width 24mm	L Length 38.2mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-08-06	Product Weight 0.14 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this adapter work with standard hydraulic fittings? I want to make sure it's compatible with what I already have.

Question by: Roy C on Oct 7, 2025, 3:08 PM

This adapter features a 1/2" male JIC (3/4 - 16 UNF) end and a 3/8" male BSPP (G 3/8 - 19) end, so you'll need to ensure your existing fittings match these specifications.

Answer by: Customer Support on Oct 8, 2025, 7:52 PM

trying to hook a 1/2 jic hose end over to a 3/8 bspp port, is this the right adapter?

Question by: Chad R on Mar 27, 2026, 6:06 AM

For that hookup, it matches what you described: one side is a 1/2 inch male JIC with 3/4-16 UNF threads, and the other side is a 3/8 inch male BSPP with G 3/8-19 threads, and it comes with an O-ring on the BSPP end.

Answer by: Customer Support on Mar 28, 2026, 8:25 PM
