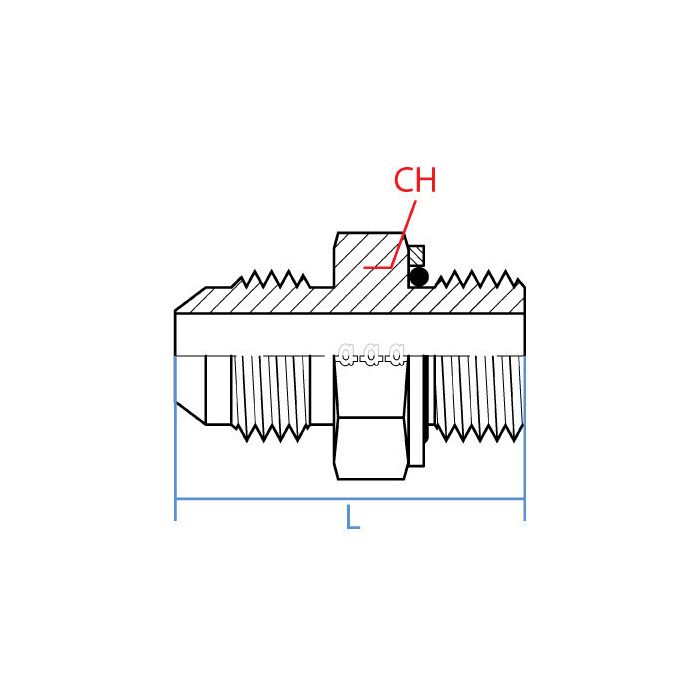

Ss316 Mjic X Mbspp C/W O'Ring SS9002-06-08

Specifications

CH Width 27mm	L Length 38.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-06-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook up a JIC line to a BSPP port and keep running into leakdown issues with other fittings. this one come with the o-ring already or do i gotta source that separate?

Question by: Keith D on Nov 29, 2025, 9:17 PM

The o-ring comes included with the fitting. That's actually the whole point of the "C/W O'Ring" callout in the name. The BSPP side relies on that o-ring for face sealing, which is why BSPP connections tend to hold pressure better than thread-only seals when the fitting is spec'd correctly. You shouldn't need to source anything extra to get a leak-free connection on that end.

Answer by: Customer Support on Dec 1, 2025, 7:31 AM

trying to hook a 3/8 jic hose up to a 1/2 bsp port. is this the right adapter?

Question by: Lynn M on Feb 20, 2026, 7:12 AM

For that mix of ends, it matches up as a straight stainless adapter with a 9/16-18 UNF male JIC on one side (3/8 size) and a G 1/2-14 male BSPP on the other side (1/2 size).

Answer by: Customer Support on Feb 21, 2026, 5:04 PM

Will this here fitting hold up if I'm runnin' hydraulic oil through it all day long?

Question by: Gary C on Aug 15, 2025, 3:43 PM

Designed to provide secure connections in demanding settings, this fitting is made from stainless steel, offering good durability for continuous use in hydraulic systems.

Answer by: Customer Support on Aug 16, 2025, 7:31 PM
