Ss Din X Fdin Swivel Run Tee Complete SS5390S-12C

Specifications

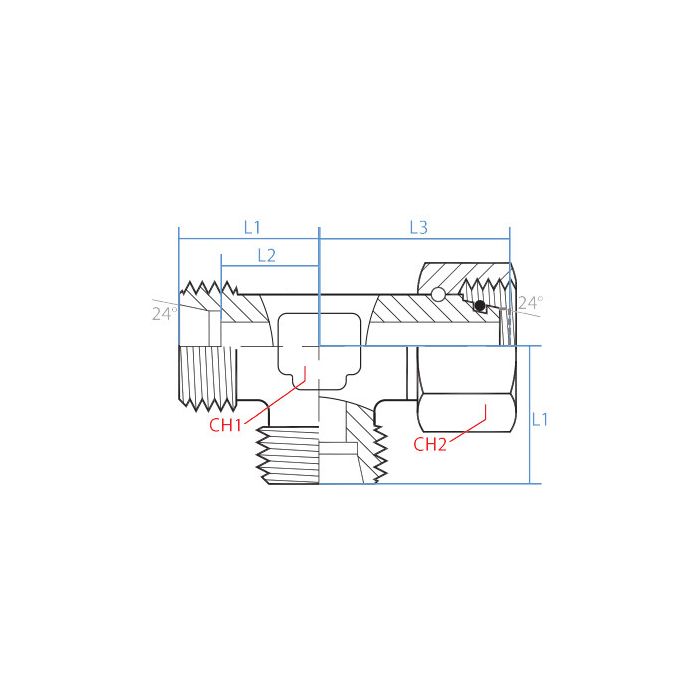

CH1 Width 17mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 31mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender F	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5390S-12C	Product Weight 0.47 lbs

Product Questions & Answers 3

Product Questions & Answers

all three ports on this thing are M20 x 1.5 threads, so if I'm running S12 DIN tube lines on both ends of a tee, this would let me branch off a third line without swapping fittings?

Question by: Debbie C on Jan 30, 2026, 6:43 PM

That's what it's built for. Two of the ports are male DIN tube connections and the third is female DIN tube, all at M20 x 1.5 and S12 sizing across the board. Running a branch off an existing S12 DIN line without mixing thread types is pretty much the whole point of this fitting. The stainless construction holds up well where corrosion is a concern, which makes it a solid pick for wet or chemical-adjacent environments too.

Answer by: Customer Support on Jan 31, 2026, 8:24 PM

trying to tie two DIN tube lines together and branch off a third, is this the kind of tee that does that?

Question by: Tommy H on Jul 1, 2025, 12:09 PM

It’s a stainless run tee adapter with DIN tube connections on all three ports, so it’s meant for exactly that setup. Two sides are DIN tube male ends and the third port is a female DIN tube connection.

Answer by: Customer Support on Jul 3, 2025, 11:08 AM

So, this run tee is stainless, right? Does that mean I don't gotta worry 'bout it rustin' up on me?

Question by: Todd J on Jan 30, 2026, 9:11 PM

Being made of stainless steel, this run tee offers excellent corrosion resistance, which is critical in hydraulic systems that often deal with harsh fluids.

Answer by: Customer Support on Feb 1, 2026, 9:01 PM
