Ss Din X Fdin Swivel Run Tee

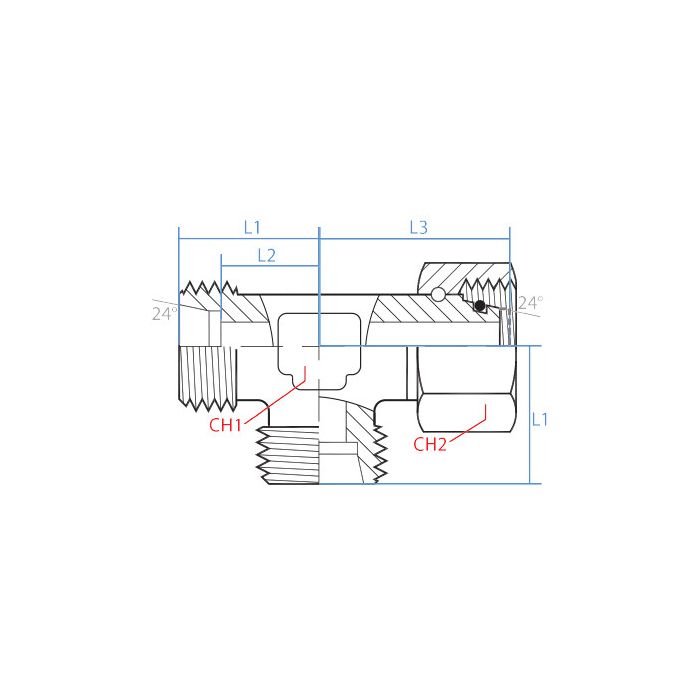

CH1 Width 14mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 15mm	L3 Length 29mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender F	Side 3 Size L10	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5390L-10	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

got two DIN tube lines that are M16 x 1.5, will this tee let me branch off with a female DIN on the third leg?

Question by: Rick K on Jul 6, 2025, 7:53 AM

Setup wise, it is a run tee with DIN tube connections on two sides that are male M16 x 1.5, plus a third side that is a female DIN tube connection. All three ends are size L10.

Answer by: Customer Support on Jul 7, 2025, 4:23 PM

Will this tee handle hydraulic fluid okay, or is it just for water and air?

Question by: Jean C on Apr 25, 2025, 3:07 PM

Constructed from stainless steel, this run tee is designed to provide secure, leak-free connections specifically in demanding hydraulic applications.

Answer by: Customer Support on Apr 27, 2025, 8:45 AM
