Ss Din X Fdin Swivel Run Tee SS5390L-08

Specifications

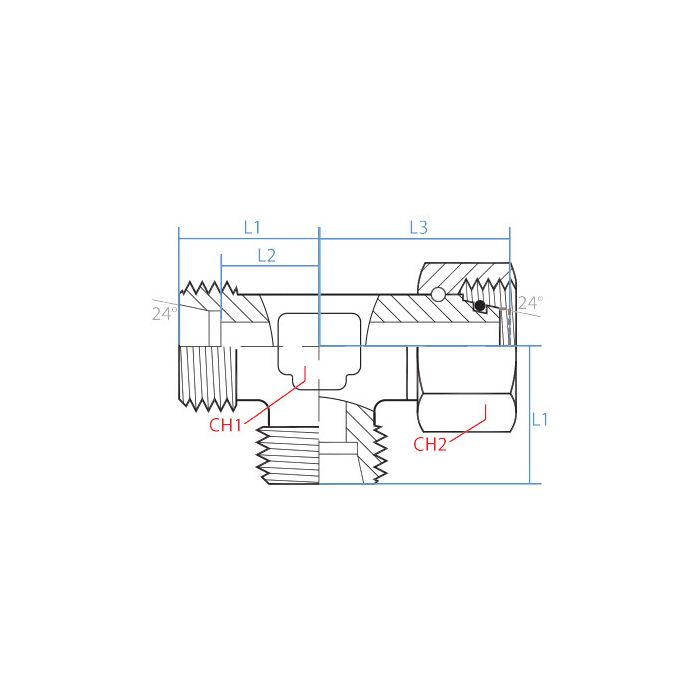

CH1 Width 12mm	CH2 Width 17mm	L1 Length 21mm	L2 Length 14mm	L3 Length 27.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size L08	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5390L-08	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a line with L08 DIN tube ends, are all three ports on this one M14 x 1.5?

Question by: Chad W on Jan 7, 2026, 11:30 AM

All three connections are DIN tube size L08 with M14 x 1.5 threads. Sides 1 and 2 are male, and side 3 is female.

Answer by: Customer Support on Jan 8, 2026, 3:48 PM

All three sides on this tee are L08 sizing, that right? Just want to make sure before I go swapping anything out on the line.

Question by: Melvin L on Dec 24, 2025, 4:02 PM

Correct on all three. Sides 1 and 2 are male DIN tube connections, both M14 x 1.5 with L08 sizing. Side 3 is the female DIN tube connection, also M14 x 1.5 and L08. The sizing is consistent across the whole fitting, so no mismatches to worry about there.

Answer by: Customer Support on Dec 26, 2025, 7:39 AM

What size wrench do I need for the side with the female DIN tube?

Question by: Shawn W on Nov 13, 2025, 10:06 AM

With a 17mm wrench flat, the side 3 (female DIN tube connection) is slightly larger than the other two sides.

Answer by: Customer Support on Nov 15, 2025, 7:34 AM
