Ss Dinx Fdin Swivel Branch Tee

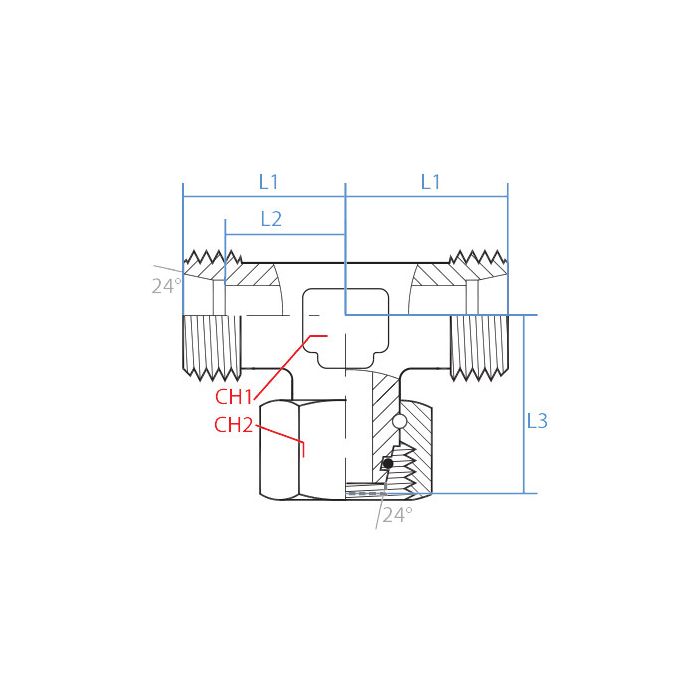

CH1 Width 37mm	CH2 Width 46mm	L1 Length 42mm	L2 Length 30mm	L3 Length 50mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender F	Side 3 Size S25	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5387S-25	Product Weight 1.64 lbs

Product Questions & Answers 1

Product Questions & Answers

all three ports on this thing are M36 x 2.0, right? just want to make sure the branch side matches before I go ordering it

Question by: Shane S on May 31, 2025, 9:39 AM

all three are M36 x 2.0 at S25 sizing. The two inline ports are male DIN tube connections, and the branch port is a female swivel DIN tube. Same thread spec across the board, so flow path compatibility stays consistent all the way through the fitting.

Answer by: Customer Support on Jun 1, 2025, 3:51 PM
