Ss Dinx Fdin Swivel Branch Tee

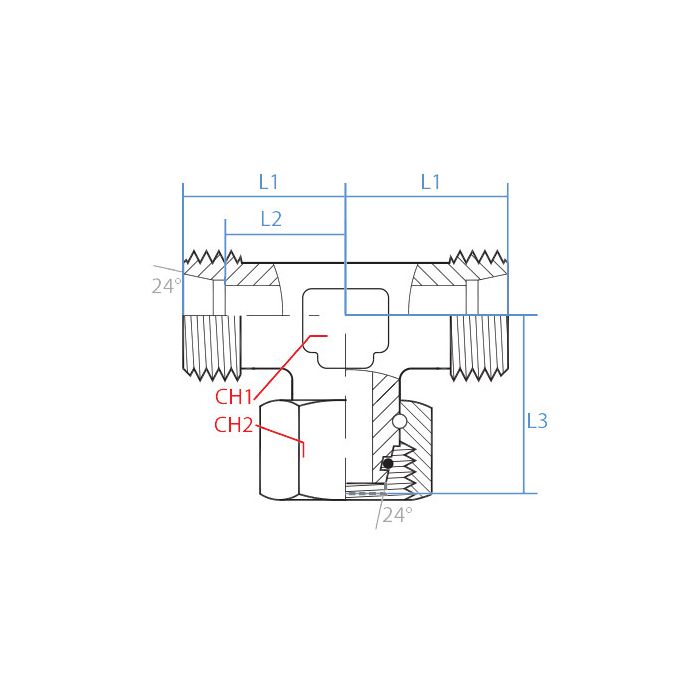

CH1 Width 24mm	CH2 Width 32mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 35.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender F	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5387L-18	Product Weight 0.62 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for the side 1 connection?

Question by: Neal W on Sep 10, 2025, 2:16 PM

You'll need a 24mm wrench for the side 1 connection. Side 2 requires a 32mm wrench.

Answer by: Customer Support on Sep 12, 2025, 1:49 PM

got a DIN L18 setup, is this tee the one with two male ends and one female swivel?

Question by: Eddie P on Feb 10, 2026, 8:17 AM

For DIN tube size L18, it’s set up with Side 1 and Side 2 as M26 x 1.5 male DIN tube connections, and Side 3 as an M26 x 1.5 female DIN tube connection. The part is a tee meant to branch a hydraulic line using DIN-style tube ends.

Answer by: Customer Support on Feb 11, 2026, 1:07 PM
