Ss 90* Din X F Din Swivel Complete

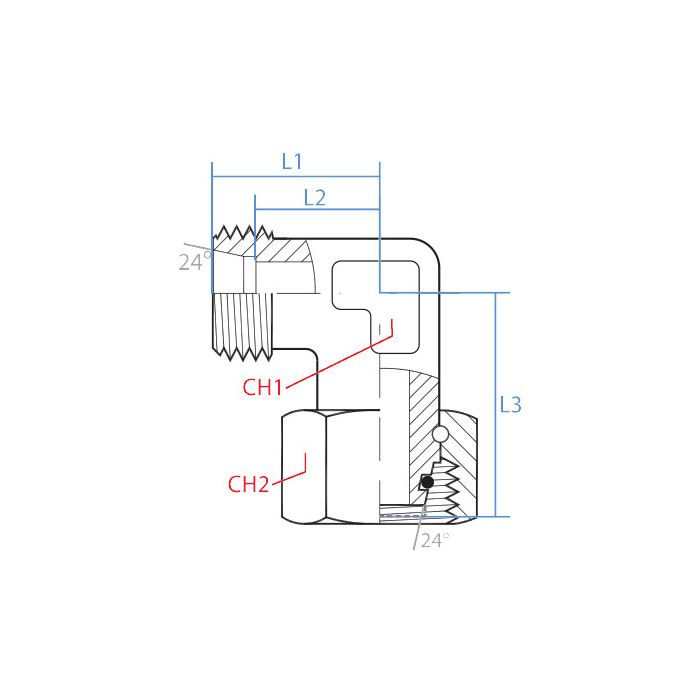

CH1 Width 37mm	CH2 Width 46mm	L1 Length 38mm	L2 Length 30.5mm	L3 Length 41.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5360L-28C	Product Weight 1.20 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out a bent elbow, is this one the kind with M36 x 2.0 on both ends and a swivel female side?

Question by: Howard W on Apr 6, 2025, 2:43 PM

Built for DIN tube connections, it has a male DIN tube end M36 x 2.0 (size L28) on one side and a female DIN tube swivel end M36 x 2.0 (size L28) on the other, with a 90 degree elbow between them.

Answer by: Customer Support on Apr 7, 2025, 7:38 PM
