Ss 90* Din X F Din Swivel Complete

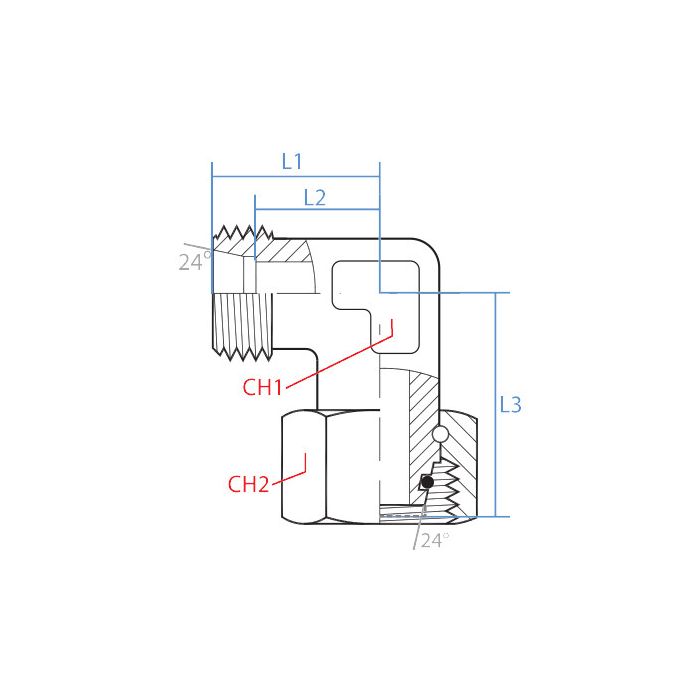

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5360L-22C	Product Weight 0.88 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this stainless fitting hold up okay in a hydraulic system running at, say, 3000 psi?

Question by: Debbie R on Apr 10, 2025, 7:32 AM

It's crafted from high-quality stainless steel, so it's definitely made for robust hydraulic systems and should offer long-lasting performance even under high pressure.

Answer by: Customer Support on Apr 11, 2025, 1:15 PM

got a tight bend in my line, is this the stainless 90 degree swivel that goes M30 x 2.0 male into M30 x 2.0 female?

Question by: Scott H on May 15, 2025, 1:21 PM

For a compact 90° turn, this fitting is a stainless 90° elbow with a swivel and it uses DIN tube threads on both ends. Side 1 is M30 x 2.0 male and side 2 is M30 x 2.0 female, with both sides sized L22.

Answer by: Customer Support on May 16, 2025, 2:05 PM
