Ss F. Din X M. Din Reducer Complete SS5315L-18-12C

Specifications

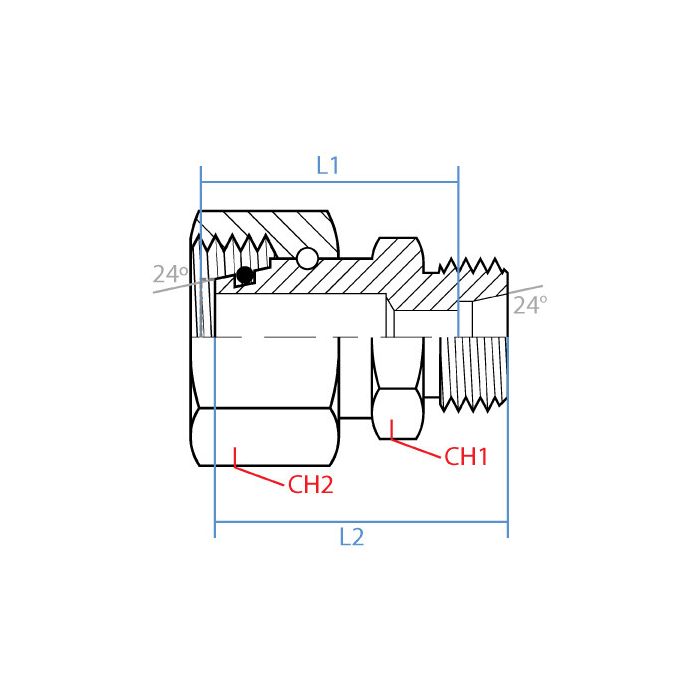

CH1 Width 24mm	CH2 Width 32mm	L1 Length 29mm	L2 Length 34.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315L-18-12C	Product Weight 0.34 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to step down from an M26 x 1.5 DIN tube end to M18 x 1.5, is this the right reducer?

Question by: Danny M on Aug 9, 2025, 1:10 PM

For a straight inline reduction between those two DIN tube thread callouts, it matches that setup: female DIN tube M26 x 1.5 (size L18) on one side to male DIN tube M18 x 1.5 (size L12) on the other.

Answer by: Customer Support on Aug 11, 2025, 6:43 AM

what's the thread size on each end of this reducer? trying to figure out if it'll bridge the gap between my existing lines before I go ordering anything

Question by: Gary E on Feb 4, 2026, 7:22 PM

The larger female end runs M26 x 1.5 with an L18 tube size, and the smaller male end is M18 x 1.5 with an L12 tube size. Both sides are DIN tube connections, so as long as your existing lines match up to those specs, you're good to go. Overall length comes in at 29mm on the female side and 34.5mm on the male side, which is worth checking against your available space before ordering.

Answer by: Customer Support on Feb 6, 2026, 6:30 AM

Can this reducer handle a good bit of pressure? I'm using it in a hydraulic setup that sees some spikes.

Question by: Scott M on Sep 28, 2025, 9:35 PM

This reducer is made from stainless steel, so it's built to withstand demanding fluid power environments.

Answer by: Customer Support on Sep 30, 2025, 7:52 AM
