Ss F. Din X M. Din Reducer

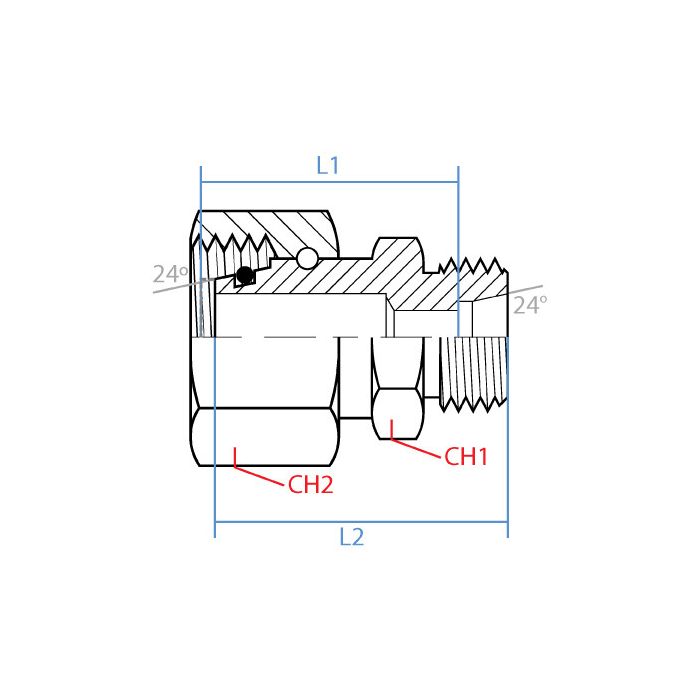

CH1 Width 24mm	CH2 Width 32mm	L1 Length 29mm	L2 Length 34.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315L-18-12	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the thread size on the male end of this reducer?

Question by: Sheila J on Jul 25, 2025, 4:18 PM

Male side runs M18 x 1.5, which is a standard DIN tube fitting. The female end on the other side is M26 x 1.5, so this piece steps down between those two sizes in a straight configuration.

Answer by: Customer Support on Jul 27, 2025, 9:31 AM

trying to step down from an M26 x 1.5 din tube fitting to an M18 x 1.5, is that what this reducer does?

Question by: Sheila M on Mar 5, 2026, 8:57 AM

For stepping between DIN tube thread sizes, it goes from an M26 x 1.5 female DIN tube end to an M18 x 1.5 male DIN tube end, in a straight reducer style.

Answer by: Customer Support on Mar 7, 2026, 8:43 AM
