Ss F. Din Soft Seal Union

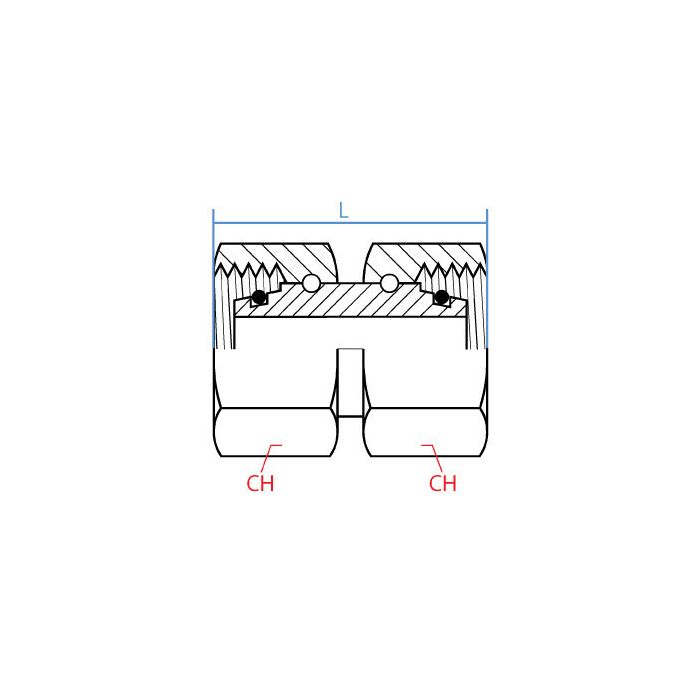

CH1 Width 22mm	CH2 Width 16mm	L Length 38.4mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5300L-12	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out a straight DIN union i’ve got now, what are the thread and size details on this one

Question by: Floyd C on Nov 18, 2025, 9:39 PM

Both ends are female M18 x 1.5 DIN tube connections, and each side is size L12.

Answer by: Customer Support on Nov 20, 2025, 6:26 AM

Both ends on this thing are female M18 x 1.5, does that mean it's meant to connect two male DIN tube fittings together, or am I reading that wrong?

Question by: Lance R on May 30, 2025, 7:16 PM

You're reading it right. Both sides are female M18 x 1.5 DIN tube connections, so it works as a union that joins two male DIN tube ends in a straight run. The L12 size applies to both sides, and the overall length comes in at 38.4 mm, which is worth accounting for when you're planning the fit in a tight space.

Answer by: Customer Support on Jun 1, 2025, 6:20 AM
