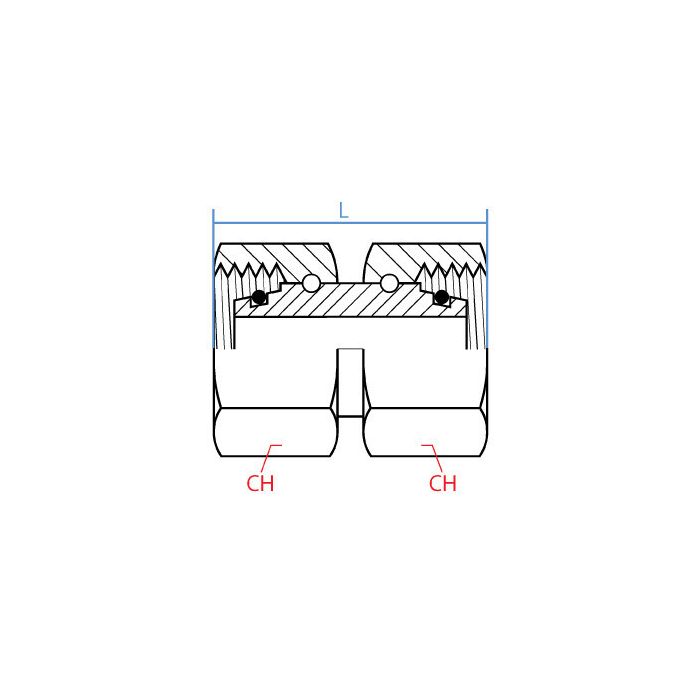

Ss F. Din Soft Seal Union SS5300L-08

Specifications

CH1 Width 17mm	CH2 Width 12mm	L Length 38.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender F	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5300L-08	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

This looks like it's for stainless lines, am I right?

Question by: Denise C on Feb 7, 2026, 8:53 PM

Correct, the union is constructed from stainless steel, making it suitable for hydraulic systems exposed to corrosive media or demanding environmental conditions.

Answer by: Customer Support on Feb 9, 2026, 3:01 PM

Both sides are M14 x 1.5 female DIN tube connections, right? Just want to make sure I ain't got a mixed fitting situation before I go swapping this in.

Question by: Hugh D on Nov 23, 2025, 10:26 AM

Correct on both counts. Each end is an M14 x 1.5 female DIN tube connection sized at L08, so you've got a true symmetrical union. No adapter needed on either side as long as your existing tube ends match that thread and size spec.

Answer by: Customer Support on Nov 24, 2025, 3:21 PM

trying to match up a stainless union i’ve got, are both ends on this one M14 x 1.5 female for DIN tube?

Question by: Norm R on Jan 8, 2026, 5:46 PM

Both sides are M14 x 1.5 female DIN tube connections, and it is sized L08 on each end, so it is meant to join two matching DIN tube ends straight through.

Answer by: Customer Support on Jan 9, 2026, 7:54 PM
