Ss Din Soft Seal Tube Cap

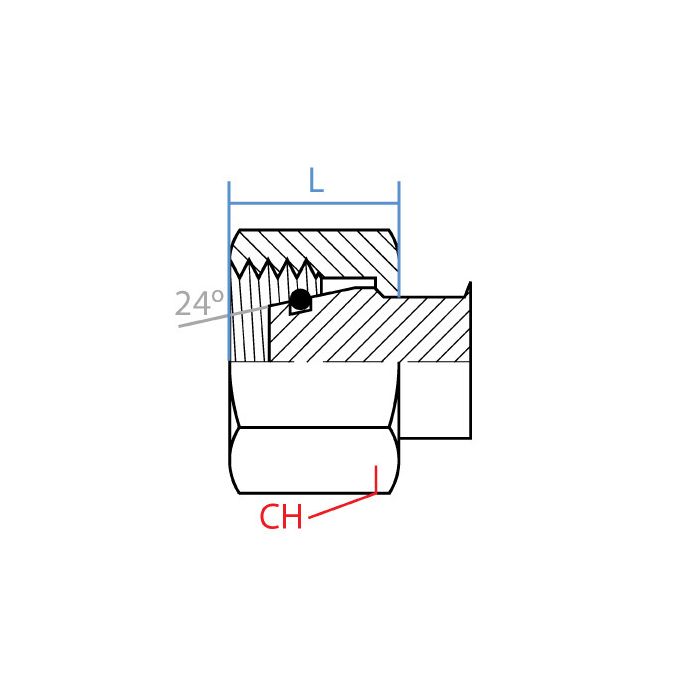

CH Width 22mm	L Length 17.5mm	Adaptall Material Stainless	Adaptall Shape Cap	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5204S-12	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a Size 12 DIN port sitting unused on a manifold block. This cap gonna thread right in with an M20 x 1.5 pitch?

Question by: Floyd W on Nov 16, 2025, 8:30 PM

M20 x 1.5 is the thread spec on this cap, so yes, it'll mate directly with a female DIN port of that size. The Size 12 DIN tube designation lines up with that thread, and the soft seal construction means you're getting a leak-resistant closure without needing a metal-to-metal seat to do the work. At 17.5mm long and 22mm across the flats, it's a fairly compact fitting, so clearance around the port shouldn't be a problem in most assemblies.

Answer by: Customer Support on Nov 18, 2025, 6:29 AM
