Ss Male Tube Plug

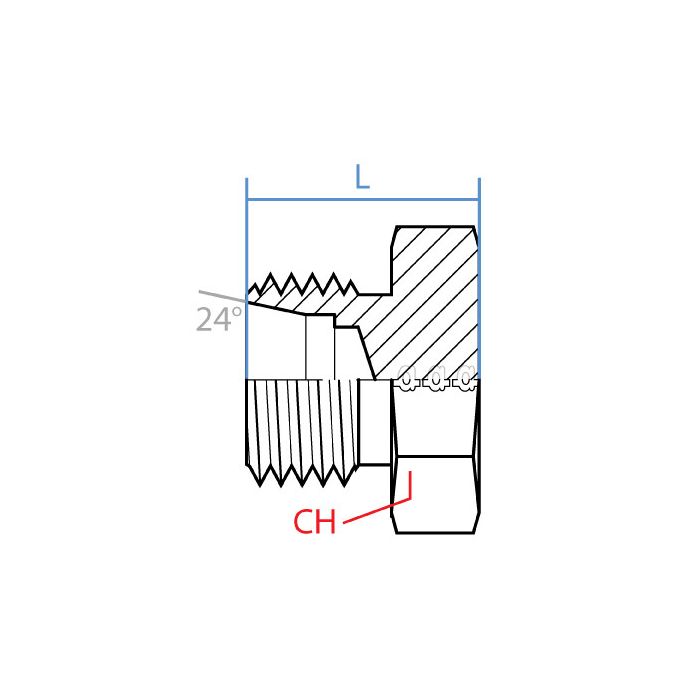

CH Width 41mm	L Length 31mm	Adaptall Material Stainless	Adaptall Shape Plug	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5203S-25	Product Weight 0.53 lbs

Product Questions & Answers 3

Product Questions & Answers

what size thread does this plug use, and is it a standard metric pitch?

Question by: Howard S on Jun 29, 2025, 12:17 PM

M36 x 2.0 is the thread spec on this one. That's a metric coarse-ish pitch and pretty common in DIN-style hydraulic fittings. The S25 size designation refers to the DIN tube connection side, so as long as your port or tube end matches up to those specs, you should be in good shape for a proper seal.

Answer by: Customer Support on Jun 30, 2025, 1:49 PM

What exactly is this plug made of? I need something that can handle some pretty harsh stuff without corroding.

Question by: Scott H on Nov 24, 2025, 11:38 AM

This plug is crafted from high-grade stainless steel. Its stainless steel construction offers superior corrosion resistance, ensuring it will last a while even in harsh conditions.

Answer by: Customer Support on Nov 26, 2025, 6:31 AM

Trying to cap off a DIN tube end, is this plug the one with S25 and an M36 x 2.0 male thread?

Question by: Randy M on Mar 24, 2026, 6:14 PM

For sealing a DIN Tube connection, it matches an S25 size with an M36 x 2.0 male thread, so it’s meant to screw in and plug that tube end.

Answer by: Customer Support on Mar 26, 2026, 7:21 AM
