Ss Male Tube Plug

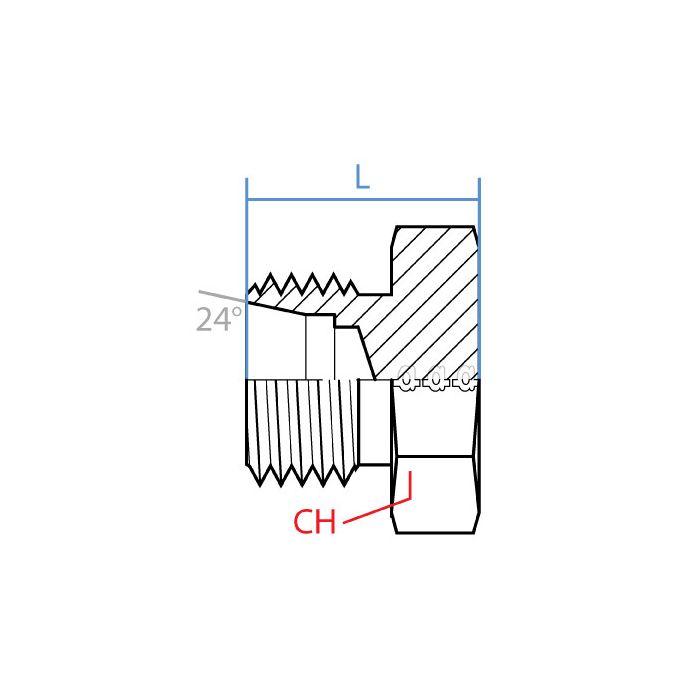

CH Width 27mm	L Length 24mm	Adaptall Material Stainless	Adaptall Shape Plug	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5203S-16	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DIN tube port i need to take out of service. is this the right plug for an M24 x 1.5 port?

Question by: Frank S on Feb 18, 2026, 3:47 PM

For sealing off a DIN tube port with an M24 x 1.5 male DIN tube thread (Size S16), this plug is a match. It threads into a compatible female DIN tube port fitting and seats to close the connection point without needing an extra adapter.

Answer by: Customer Support on Feb 19, 2026, 9:14 PM

What exactly is this plug meant to do in a hydraulic system, and is it a permanent fix or more of a temporary cap?

Question by: Wes P on Jun 1, 2025, 6:07 AM

Closing off unused DIN tube ports is the main job here. If you've got a port in a hydraulic circuit that's either out of service or just doesn't have a connection running to it, this plug threads in and seals it up clean. The M24 x 1.5 male DIN thread seats directly into a compatible female port, so no extra adapters are needed. Whether you're using it long-term or just taking a circuit point out of rotation for a while, it handles both situations fine.

Answer by: Customer Support on Jun 2, 2025, 4:03 PM
