Ss316-Din2353S Series Tube Nut

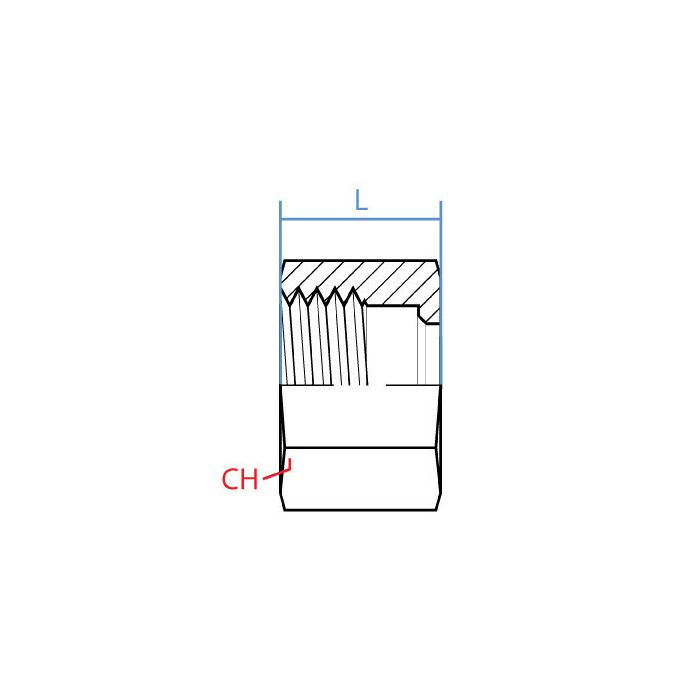

CH Width 60mm	L Length 32.5mm	Adaptall Material Stainless	Adaptall Shape Component	Side 1 Callout M52 X 2.0	Side 1 Gender F	Side 1 Size S38	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5201S-38	Product Weight 0.75 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this tube nut hold up to some serious pressure in a hydraulic system?

Question by: Randy B on Oct 25, 2025, 2:35 PM

This DIN 2353S series tube nut is designed for demanding industrial environments where larger-diameter line connections are needed.

Answer by: Customer Support on Oct 27, 2025, 6:30 AM

trying to match up a tube nut i already have, is this one the M52 x 2.0 female din style for S38 tube?

Question by: Melvin A on Sep 10, 2025, 4:05 PM

The key callouts on this nut are a female DIN tube connection with an M52 x 2.0 thread on Side 1, sized for S38 tubing. It is a DIN 2353S series tube nut meant to be used with DIN-standard compression fittings.

Answer by: Customer Support on Sep 11, 2025, 7:04 PM
