Ss Din Union Tee Complete

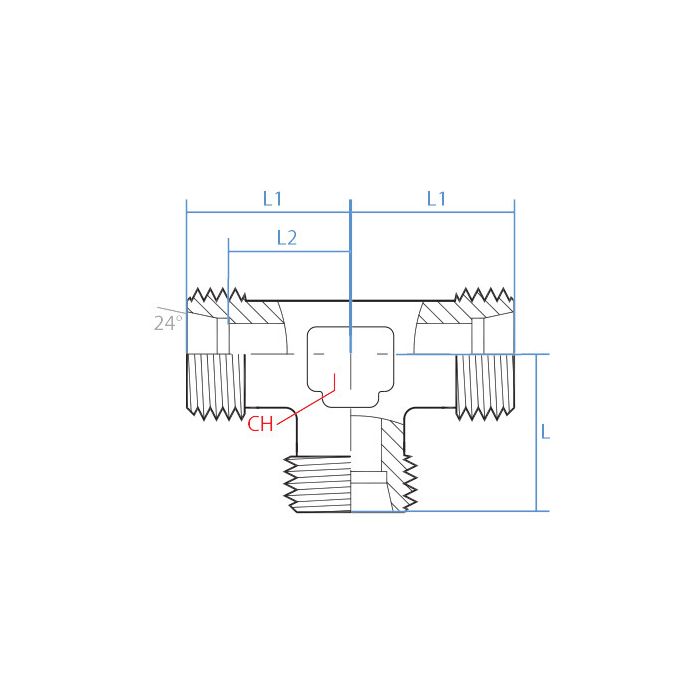

CH Width 37mm	L1 Length 42mm	L2 Length 30mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender M	Side 3 Size S25	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080S-25C	Product Weight 2.67 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for these tees?

Question by: Lynn G on Jan 11, 2026, 9:30 AM

You'll need a 37mm wrench to tighten these fittings properly.

Answer by: Customer Support on Jan 13, 2026, 7:42 AM

All three ports on this thing are the same size and thread, right? Just want to make sure before I order it for a branching line I'm putting together.

Question by: Dwayne W on Aug 5, 2025, 9:08 PM

All three ports are identical. Each one runs M36 x 2.0 male threading with an S25 size designation and DIN tube connections across the board. So if you're splitting a line into two directions and need everything to match up without adapters in between, this fits that application cleanly. The symmetrical layout is part of what makes it useful for branching tube runs.

Answer by: Customer Support on Aug 7, 2025, 6:19 AM
